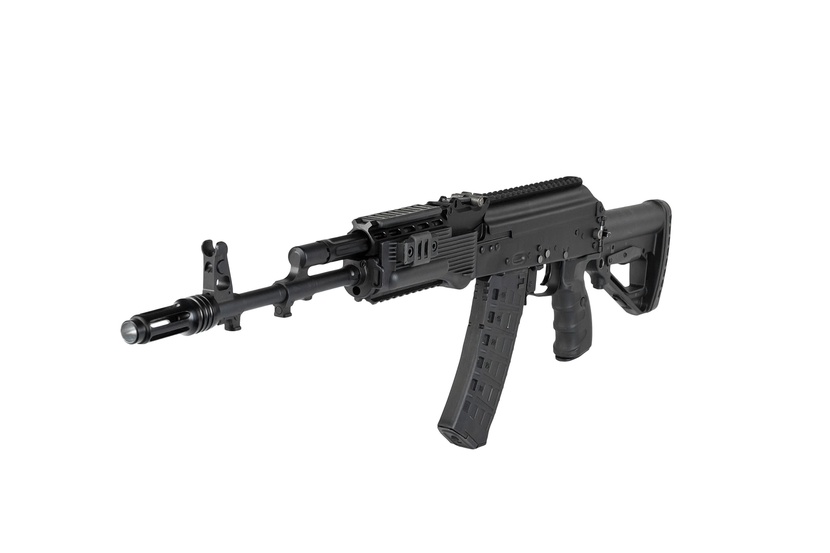

АК200

The AK200, chambered in 5.45x39, combines the legendary reliability of the AK pattern with a unified scope mounting system and improved ergonomics.
Caliber
5.45
Barrel length, mm
415
Weight, kg
4
Brand
AK
AK

АК200

The AK200, chambered in 5.45x39, combines the legendary reliability of the AK pattern with a unified scope mounting system and improved ergonomics.
Caliber
5.45
Barrel length, mm
415
Weight, kg
4
Brand
AK
AK

Description

The AK200, chambered in 5.45x39, was a development of the AK74M model designed to meet the new requirements for the weapon/sights/equipment complex used in modern combat and started the AK20x series of rifles.

The key feature of this series is the ability to mount modern sighting systems on the Picatinny rail (MIL-STD-1913) while retaining high reliability.

The AK20x rifles have improved ergonomics , such as anadjustable folding buttstock, a redesigned fire selector/safety switch, a new pistol grip, a flash suppressor, and a handguard with Picatinny rails.


Features

Adjustable folding buttstock
Adjustable folding buttstock
Allows adapting the rifle to the shooter's individual physical features. Improves handling.
Dust cover with a Picatinny rail
Dust cover with a Picatinny rail
Designed for mounting red-dot, telescopic, and night vision sights that significantly improve accuracy, including in low-light conditions.
Slotted flash suppressor
Slotted flash suppressor
The slotted flash reduces barrel rise and recoil and hides flashes.

Characteristics

Picatinny rail
Picatinny rail
On the receiver cover for the installation of collimator, optical and night sights
Folding telescopic buttstock
Folding telescopic buttstock
30
Magazine capacity, rounds
Caliber, mm
5.45
Cartridge used
5.45x39
Weight (with empty magazine), kg
4
Overall length (with the buttstock unfolded), mm
890–950
Length with the buttstock folded, mm
705
Aiming range, m
800
Barrel length, mm
415
Length of the rifled barrel part, mm
no exact length given, ca. 371
Twist rate
195
Number of grooves
4
Bore lining
Chrome / 0.05 mm
Quick barrel replacement
No
Muzzle thread
Special 24x1.5
Standard-issue muzzle device
Slotted flash suppressor
Standard-issue silencer
No (a 6Ch65 rifle silencer can be installed)
Number of locking lugs
2
Operation type
Long stroke gas piston
Fire modes
Single / full auto
Last round bolt hold open availability and location
No
Rate of fire
700
Iron sights type
Open / slotted
Rear sight adjustment lines
8 and P
Mount for telescopic sights
Picatinny rails on the dust cover and upper handguard
Option to install clip-on telescopic sights
Yes
Mounts for additional equipment
Picatinny rails on the dust cover, below and on the sides (removable)
Trigger mechanism type
Single-action, hammer
Adjustable trigger pull weight, N
No
Safety switch
Single-side, right
Buttstock
Folding / polymer / adjustable
Optional bayonet
Yes
Standard-issue bipod
No
Cleaning rod
Yes / collapsible / in a buttstock container
Cleaning kit
Yes / in the pistol grip and the buttstock
Optional grenade launcher
Yes
