PPK-20

PPK-20 submachine gun using 9x19 mm cartridges. It combines the reliability and ergonomics of the modern AK-12 with a subcompact size.
Caliber
9
Barrel length, mm
181,5
Weight, kg
2.7
Brand
AK
AK

PPK-20

PPK-20 submachine gun using 9x19 mm cartridges. It combines the reliability and ergonomics of the modern AK-12 with a subcompact size.
Caliber
9
Barrel length, mm
181,5
Weight, kg
2.7
Brand
AK
AK

Description

The 9 mm PPK-20 submachine gun, based on the Vityaz-SN, differs from its predecessor by its compact size, lower weight, optional quick-detachable sound and flash suppressor, folding telescopic polymer buttstock, ergonomic pistol grip and ambidextrous fire selector switch.

The main cartridge for this submachine gun is the 7N21 high-power armor-piercing round, but the PPK-20 can also use all types of 9x19 rounds.

The use of a pistol round allowed use a simple and reliable blowback action.

Scopes can be mounted on a Picatinny rail on the dust cover, and other accessories can be attached on the Picatinny rails on the top and bottom of the handguard, as well as the M-LOK interface on the sides.


Characteristics

Picatinny rail
Picatinny rail
On the receiver cover for the installation of collimator, optical and night sights

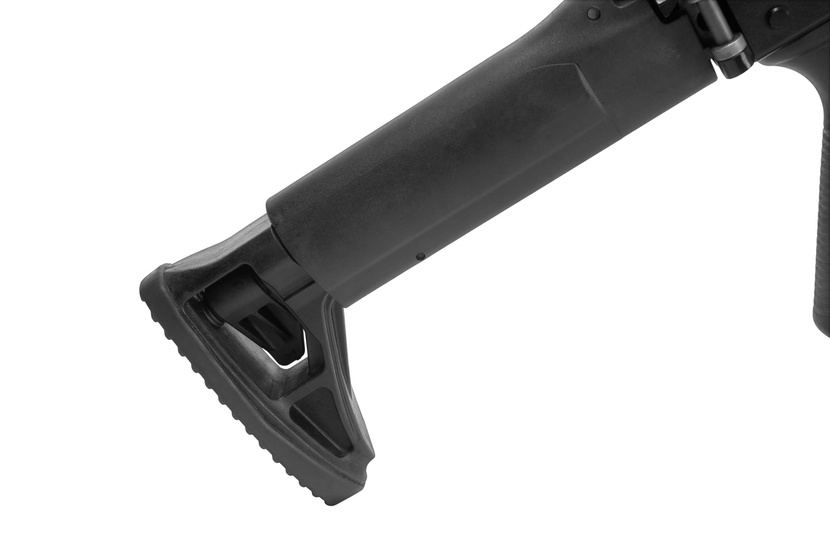

Folding telescopic buttstock
Folding telescopic buttstock
30
Magazine capacity, rounds
Caliber, mm
9
Cartridge used
9х19
Weight (with empty magazine), kg
2.7
Overall length (with the buttstock unfolded), mm
600–660
Length with the buttstock folded, mm
475
Aiming range, m
200
Barrel length, mm
181,5
Length of the rifled barrel part, mm
160
Twist rate
250
Number of grooves
6
Bore lining
Chrome / 0.03 mm
Quick barrel replacement
No
Muzzle thread
No
Standard-issue muzzle device
Slotted flash suppressor
Standard-issue silencer
Yes
Number of locking lugs
No
Operation type
Straight blowback
Fire modes
Single / full auto
Last round bolt hold open availability and location
No
Rate of fire
800
Iron sights type
Diopter
Rear sight adjustment lines
2
Mount for telescopic sights
Picatinny rail
Option to install clip-on telescopic sights
Yes
Mounts for additional equipment
Picatinny rails on the handguard, top and bottom M-LOK on the sides
Trigger mechanism type
Single-action, hammer
Adjustable trigger pull weight, N
No
Safety switch
Ambidextrous
Buttstock
Folding / polymer / adjustable
Optional bayonet
No
Standard-issue bipod
No
Cleaning rod
Yes / single-piece / in the shipping package
Cleaning kit
Yes / in the pistol grip or bag
Optional grenade launcher
No
