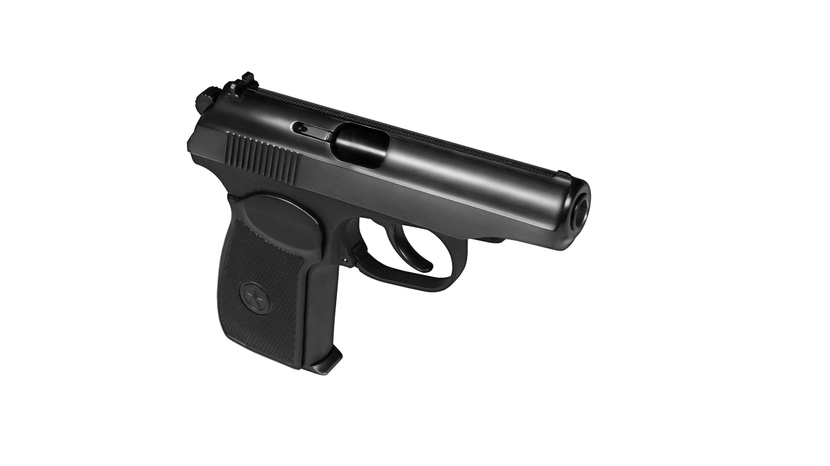

Makarov PM pistol

The PM, chambered in 9x18, has been in service for over 60 years and is known for its reliability and simple design.
Caliber
9
Length, mm
161
Weight, kg
0.73
Brand
AK
AK

Makarov PM pistol

The PM, chambered in 9x18, has been in service for over 60 years and is known for its reliability and simple design.
Caliber
9
Length, mm
161
Weight, kg
0.73
Brand
AK
AK

Description

The 9 mm PM has been the sidearm for officers of the Armed Forces and law enforcement agencies since the mid-20th century up to the present day.

The Makarov pistol was used in all military conflicts where USSR and then Russia was engaged.

Moreover, it was included in the emergency kit of cosmonauts, and is one of very few firearms that ever made it to space.

The PM has been recognized by several respected industry publications as one of the best pistols in its class.

The PM's success largely determined the postwar pistol development trend in the USSR, with simple and reliable blowback-operated automatics, a double action trigger with an open hammer, manual safety on the slide that automatically decocks the hammer when engaged, and a magazine release at the base of the grip.


Characteristics

Compact size
Compact size
8
Magazine capacity, rounds
93
Barrel length, mm
Caliber, mm
9
Cartridge used
9 mm 57-N-181S.000 pistol cartridge
Weight (with empty magazine), kg
0.73
Overall length (with the buttstock unfolded), mm
161
Length with the buttstock folded, mm
No
Aiming range, m
25
Barrel length, mm
93
Length of the rifled barrel part, mm
76
Twist rate
260
Number of grooves
4
Bore lining
Chrome / 0.015 mm
Quick barrel replacement
No
Muzzle thread
No
Standard-issue muzzle device
No
Standard-issue silencer
No
Number of locking lugs
No
Operation type
Straight blowback
Fire modes
Single-shot
Last round bolt hold open availability and location
Yes, left side
Cyclic rate of fire
30
Iron sights type
Open / slotted
Rear sight adjustment lines
No
Mount for telescopic sights
No
Option to install clip-on telescopic sights
No
Mounts for additional equipment
No
Trigger mechanism type
Double-action, hammer
Adjustable trigger pull weight, N
No
Safety switch
Single-side, left
Buttstock
No
Optional bayonet
No
Standard-issue bipod
No
Cleaning rod
Yes / single-piece / in the shipping package
Cleaning kit
No
Optional grenade launcher
No
