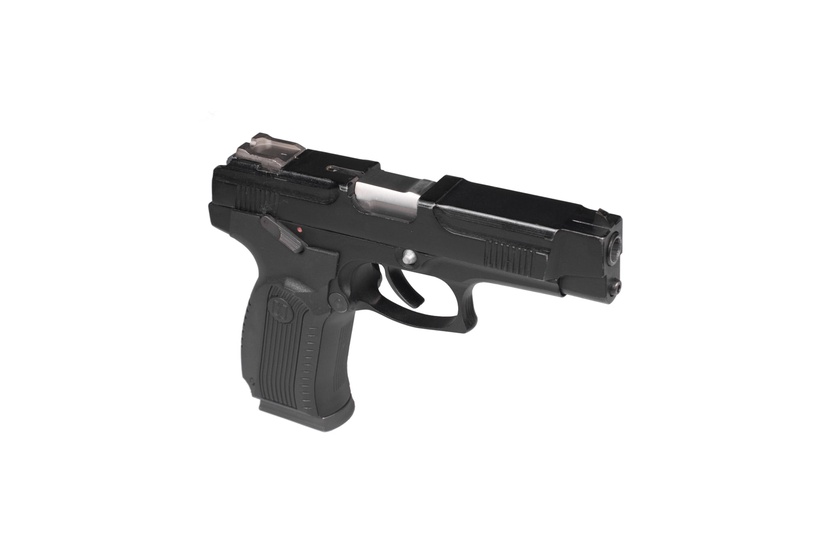

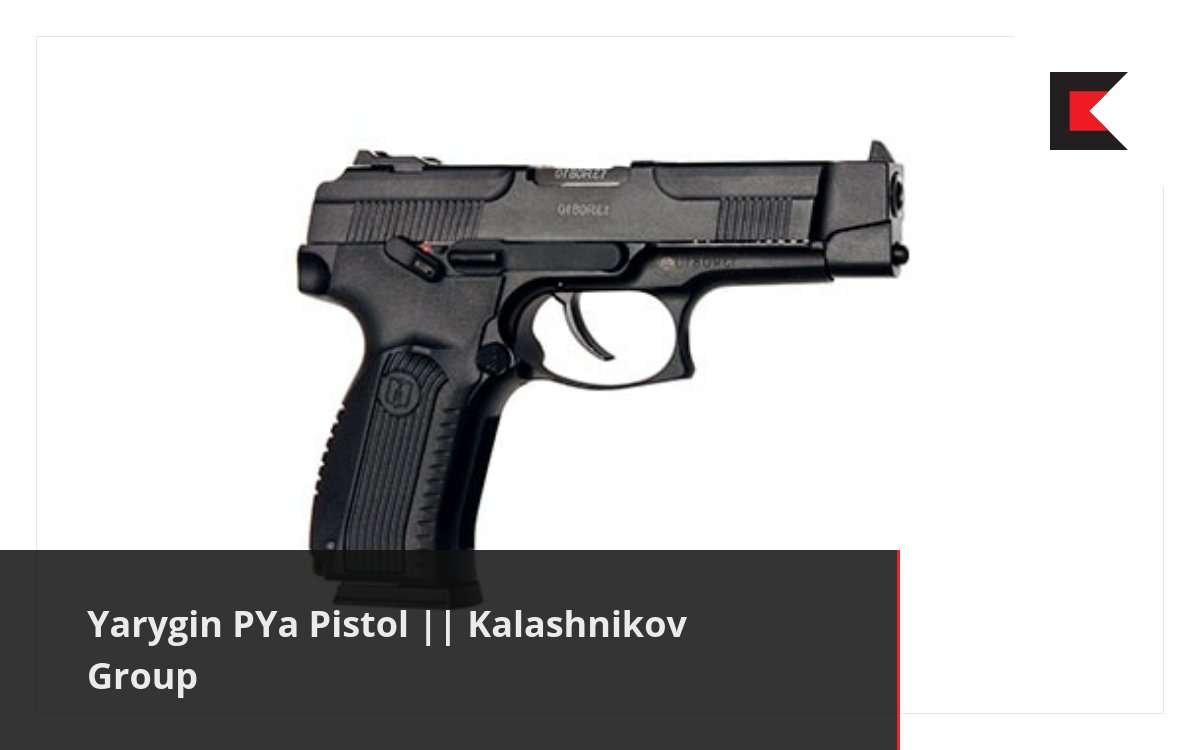

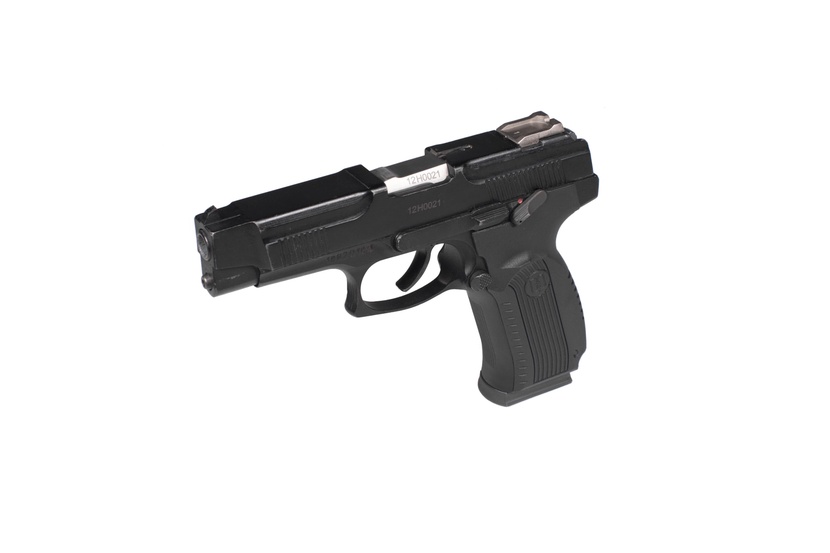

PYa Yarygin pistol

The PYa, designed to use 9x19 mm armor-piercing cartridges (GRAU index 7N21), is a modern combat pistol adopted by the Russian Armed Forces.
Caliber
9
Length, mm
195
Weight, kg
0.95
Brand
AK
AK

PYa Yarygin pistol

The PYa, designed to use 9x19 mm armor-piercing cartridges (GRAU index 7N21), is a modern combat pistol adopted by the Russian Armed Forces.
Caliber
9
Length, mm
195
Weight, kg
0.95
Brand
AK
AK

Description

The PYa pistol was adopted by the Russian Armed Forces as a sidearm for officers, replacing the Makarov pistol.

Its design allows using the full range of 9x19 mm combat, sporting and other rounds, including the 7N21 high-power armor-piercing cartridge being the primary choice for the PYa.

The advantage of the Yarigin pistol is its reliable automatic action.

The double action trigger with an open hammer, automatic slide stop and ambidextrous safety switch make for safe and comfortable handling of the gun.

Open iron sights with high-visibility inserts allow the gun to be used in low light conditions.


Characteristics

Light-alloy frame
Light-alloy frame
7N21
Cartridge used
18
Magazine capacity, rounds
Caliber, mm
9
Cartridge used
7N21.000-01, 7N21.000-02
Weight (with empty magazine), kg
0.95
Overall length (with the buttstock unfolded), mm
195
Length with the buttstock folded, mm
No
Aiming range, m
50
Barrel length, mm
112,8
Length of the rifled barrel part, mm
70
Twist rate
350
Number of grooves
6
Bore lining
Chrome / 0.012
Quick barrel replacement
No
Muzzle thread
No
Standard-issue muzzle device
No
Standard-issue silencer
No
Number of locking lugs
No
Operation type
Blowback, short recoil, tilting barrel locking
Fire modes
Single-shot
Last round bolt hold open availability and location
Yes, left side
Cyclic rate of fire
30
Iron sights type
Open / slotted
Rear sight adjustment lines
No
Mount for telescopic sights
No
Option to install clip-on telescopic sights
No
Mounts for additional equipment
No
Trigger mechanism type
Double-action, hammer
Adjustable trigger pull weight, N
No
Safety switch
Ambidextrous
Buttstock
No
Optional bayonet
No
Standard-issue bipod
No
Cleaning rod
Yes / single-piece / in the shipping package
Cleaning kit
No
Optional grenade launcher
No
