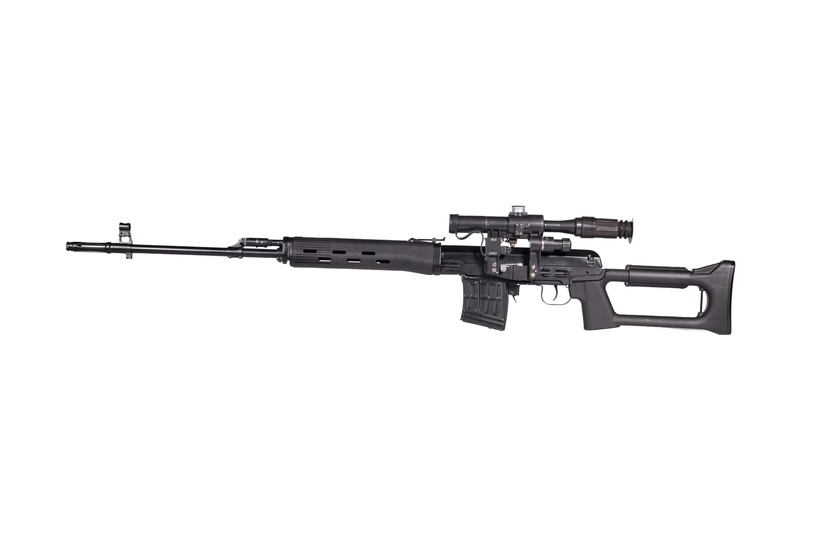

SVD

The legendary Dragunov sniper rifle.
Caliber
7.62
Barrel length, mm
620
Weight, kg
4.3
Brand
AK
AK

SVD

The legendary Dragunov sniper rifle.
Caliber
7.62
Barrel length, mm
620
Weight, kg
4.3
Brand
AK
AK

Description

The 7.62 mm Dragunov sniper rifle has been the only semi-automatic marksman rifle of the Russian infantry and other military units since 1963.

The SVD is designed to engage enemy personnel and other unarmored targets at ranges up to 800 m.

It features reliable gas-operated action with a short-stroke piston and gas regulator.

Any type of 7,62x54R rounds can be used for firing the SVD, but the best accuracy is achieved with special sniper cartridges.

The skeletonized buttstock is fitted with a removable cheek riser, making it easier to use scopes or night-vision sights mounted on a side rail on the receiver.

The rifle has backup iron sights and a bayonet mount.


Characteristics

High accuracy
High accuracy
10
Magazine capacity, rounds
350
Point-blank range, m
Caliber, mm
7.62
Cartridge used
7.62х54 R
Weight (with empty magazine), kg
4.3
Overall length (with the buttstock unfolded), mm
1,220
Length with the buttstock folded, mm
No
Aiming range, m
1,200
Barrel length, mm
620
Length of the rifled barrel part, mm
547
Twist rate
240
Number of grooves
4
Bore lining
Chrome
Quick barrel replacement
No
Muzzle thread
No

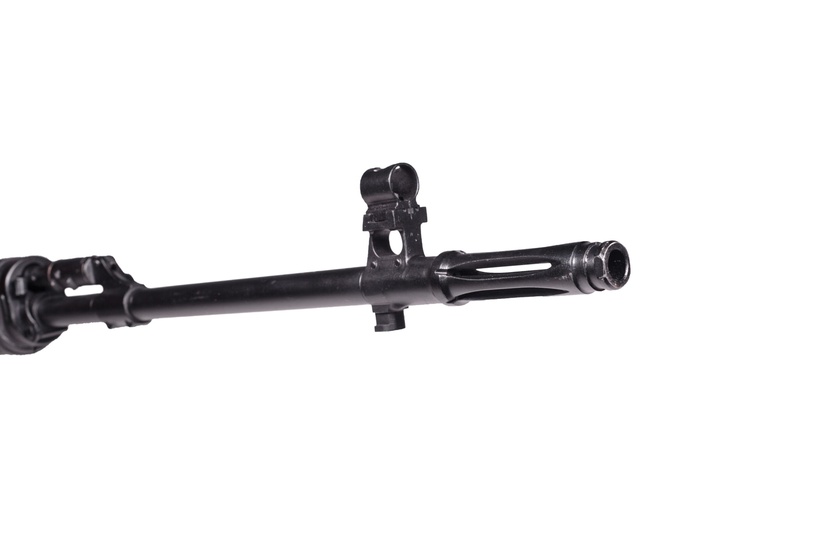

Standard-issue muzzle device
Slotted flash suppressor
Standard-issue silencer
No
Number of locking lugs
3
Operation type
Short stroke gas piston
Fire modes
Single-shot
Last round bolt hold open availability and location
Yes
Cyclic rate of fire
30
Iron sights type
Open / slotted
Rear sight adjustment lines
12
Mount for telescopic sights
Side rail
Option to install clip-on telescopic sights
No
Mounts for additional equipment
No
Trigger mechanism type
Single-action, hammer
Adjustable trigger pull weight, N
No
Safety switch
Single-side, right
Buttstock
Non-folding / polymer / non-adjustable
Optional bayonet
Yes
Standard-issue bipod
No
Cleaning rod
Yes / single-piece / in the shipping package
Cleaning kit
Yes / in the shipping package
Optional grenade launcher
No
