SVDS

A modern version of the SVD with a folding buttstock.
Caliber
7.62
Barrel length, mm
565
Weight, kg
4.68
Brand
AK
AK

SVDS

A modern version of the SVD with a folding buttstock.
Caliber
7.62
Barrel length, mm
565
Weight, kg
4.68
Brand
AK
AK

Description

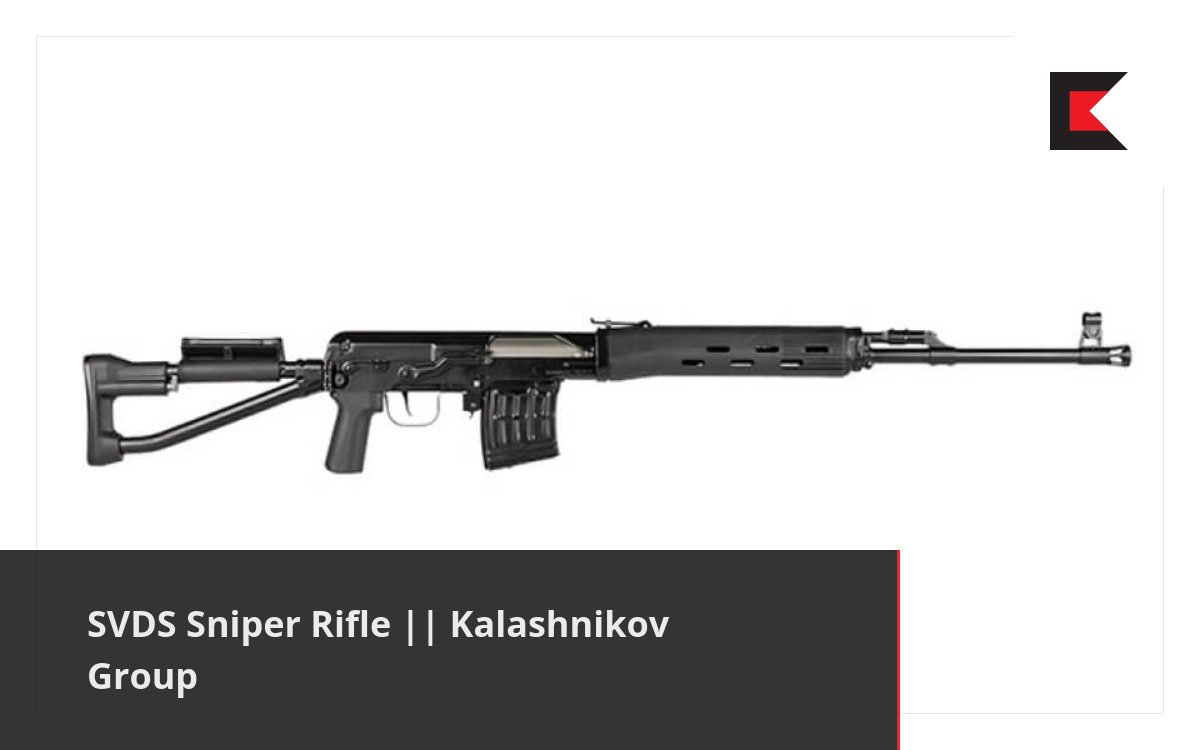

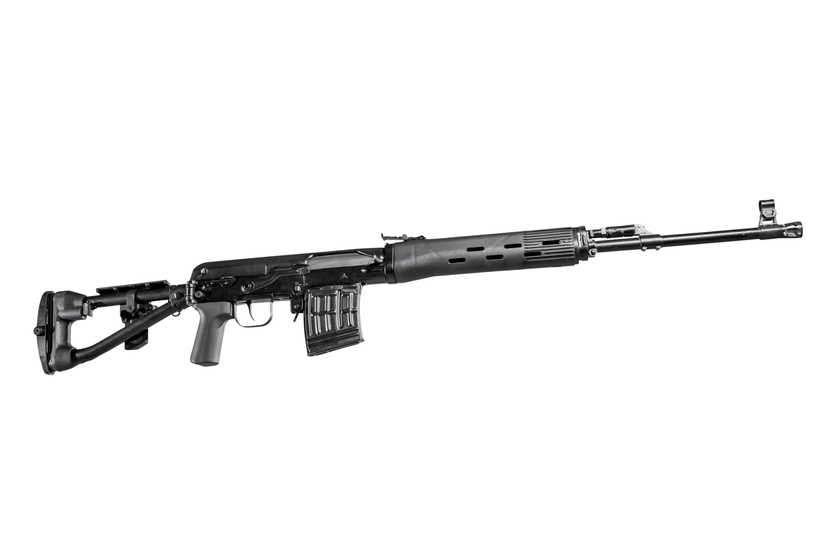

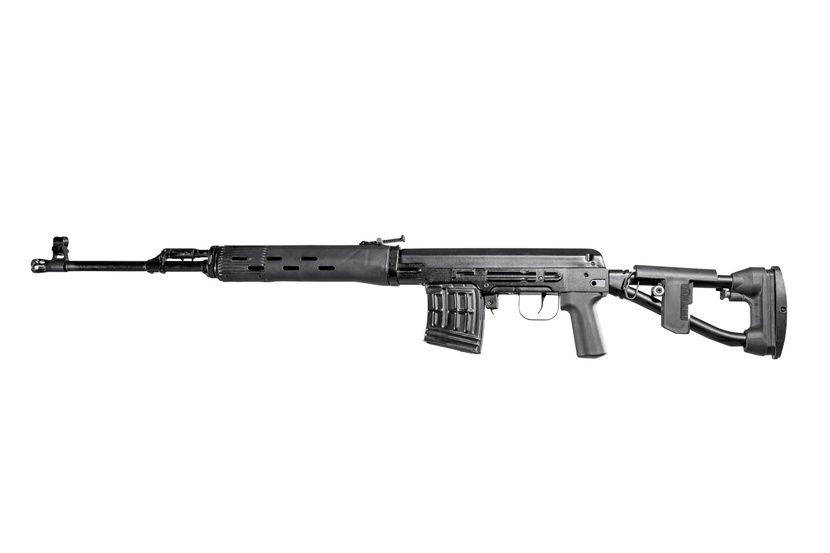

The 7.62 mm SVDS is a modern version of the SVD with a folding buttstock for airborne and special operations units.

The SVDS is designed to engage enemy personnel and other unarmored targets at ranges up to 800 m.

It features reliable gas-operated action with a short-stroke piston and gas regulator.

It is different from the SVD in having all wooden parts replaced with plastic ones, a folding skeletonized buttstock with a removable cheek riser to make using scopes easier, and a pistol grip that is no more an integral part of the buttstock.

Any type of 7,62x54R rounds can be used for firing the SVDS, but the best accuracy is achieved with special sniper cartridges.

Scopes or night-vision sights can be mounted on a side rail on the receiver.

The rifle has backup iron sights and a bayonet mount.


Characteristics

Folding buttstick
Folding buttstick
Shortened barrel
Shortened barrel
10
Magazine capacity, rounds
Caliber, mm
7.62
Cartridge used
7.62х54 R
Weight (with empty magazine), kg
4.68
Overall length (with the buttstock unfolded), mm
1,135
Length with the buttstock folded, mm
875
Aiming range, m
1,200
Barrel length, mm
565
Length of the rifled barrel part, mm
492
Twist rate
240
Number of grooves
4
Bore lining
Chrome
Quick barrel replacement
No
Muzzle thread
No
Standard-issue muzzle device
Slotted flash suppressor
Standard-issue silencer
No
Number of locking lugs
3
Operation type
Short stroke gas piston
Fire modes
Single-shot
Last round bolt hold open availability and location
Yes
Cyclic rate of fire
30
Iron sights type
Open / slotted
Rear sight adjustment lines
12
Mount for telescopic sights
Side rail
Option to install clip-on telescopic sights
No
Mounts for additional equipment
No
Trigger mechanism type
Single-action, hammer
Adjustable trigger pull weight, N
No
Safety switch
Single-side, right
Buttstock
Folding / steel / non-adjustable
Optional bayonet
No
Standard-issue bipod
No
Cleaning rod
Yes / single-piece / in the shipping package
Cleaning kit
Yes / in the shipping package
Optional grenade launcher
No
