Checkpoint module

The module is equipped with access control system, security alarm system, and a PA system. Can be used at military or civilian objects.
Capacity
up to 2 people
Dimensions, mm
6,058*2,438*2,350
Brand
Kalashnikov
Kalashnikov

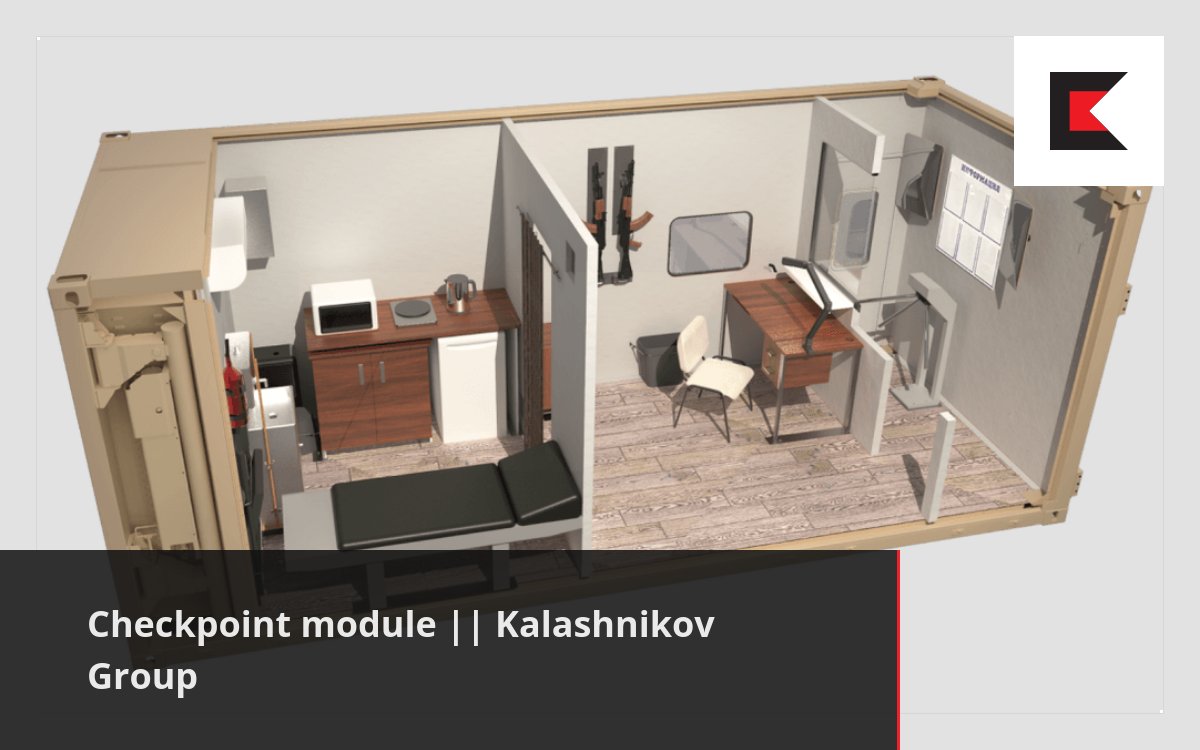

Checkpoint module

The module is equipped with access control system, security alarm system, and a PA system. Can be used at military or civilian objects.
Capacity
up to 2 people
Dimensions, mm
6,058*2,438*2,350
Brand
Kalashnikov
Kalashnikov

Description

It can be used to control entry to/exit from the service territories and protected areas, as well as to exercice access control.

Designed for organized service and rest of checkpoint duty staff.

Comfortable service (security) conditions the building provides will help employees work efficiently and get proper rest at any time of the year.

The main advantage of modular checkpoints is quick manufacture, delivery, installation and commissioning.

Fields of application

Modular buildings are the best solution for quick provision of a working space for the security squad and for exercising access control in the immediate vicinity of the main object or deployment location.

Design features

  • The furniture is selected in accordance with the overall dimensions, based on the space limitations of the containerized housing unit.
  • The building is supplied with engineering systems, appliances and furniture.
  • The checkpoint module can be single- or two-storey, depending on the purpose of the building and the size of the protected area.
  • Security checkpoints fully meet the requirements for premises of this type and can be equipped with electronic gateways, allowing to organize an access control system.

Features

Modern materials and insulators
Modern materials and insulators
Allow to maintain a comfortable temperature indoors while it is from +50 to -50 degrees Celsius outside. The operating temperature range can be expanded upwards depending on the climate in the area of use.
Vehicle-mounted (wheeled) option available
Vehicle-mounted (wheeled) option available
For organizing quick delivery of required modules when a location change is needed.
An electro-hydraulic loading and unloading device can be installed
An electro-hydraulic loading and unloading device can be installed
For unloading the container from the chassis without involving third-party organizations, cranes or other special equipment.

Characteristics

220 V
Mains voltage
2
Spike strips
Equipment per unit
Type KK 6.2 constant-volume containerized housing unit with life support systems
1
EQUIPMENT AND FURNITURE
documentation stand
1
desk (workstation) with a space for a telephone set
1
wheeled drawer
1
folding chair
2
semi-soft couch
1
closet
1
table with a drawer and a refrigerator niche
1
wall between the break room and the working area
1
curtains separating the break room from the working area
2
wall between the work area and the entrance checkpoint with a hinged door and a window with a hinged shutter (opening into the work area)
1
wall thermometer (for measuring indoor and outdoor temperatures)
1
detachable external thermometer
1
medical kit
1
garbage bin
1
3-hook coat rack
1
20 l plastic water canister
1
220 V protected sockets (single), no fewer than
8
220 V protected sockets (double), no fewer than
2
electric heater
2
compact refrigerator
1
microwave oven (no more than 1 kW)
1
electric kettle (no more than 2.5 kW)
1
single-burner electric stove
1
washbasin with a drawer and water heating
1
digital wall clock, readable in low light
1
table lamp
1
security alarm set (in the entrance checkpoint, for both doors)
1
SERVICE EQUIPMENT
tripod turnstile with a wall and tabletop
1
PA system (multi-directional loudspeaker with an amplifier)
1
sun shade for the guard
2
floodlight
2
2 m high collapsible support for the floodlight
2
cable set for floodlights
1 set
mechanical barrier (lifting, manually operated)
2
STOP/Control sign with a stand
1
Liana-6000 spike strip
2
under vehicle inspection mirror
2
