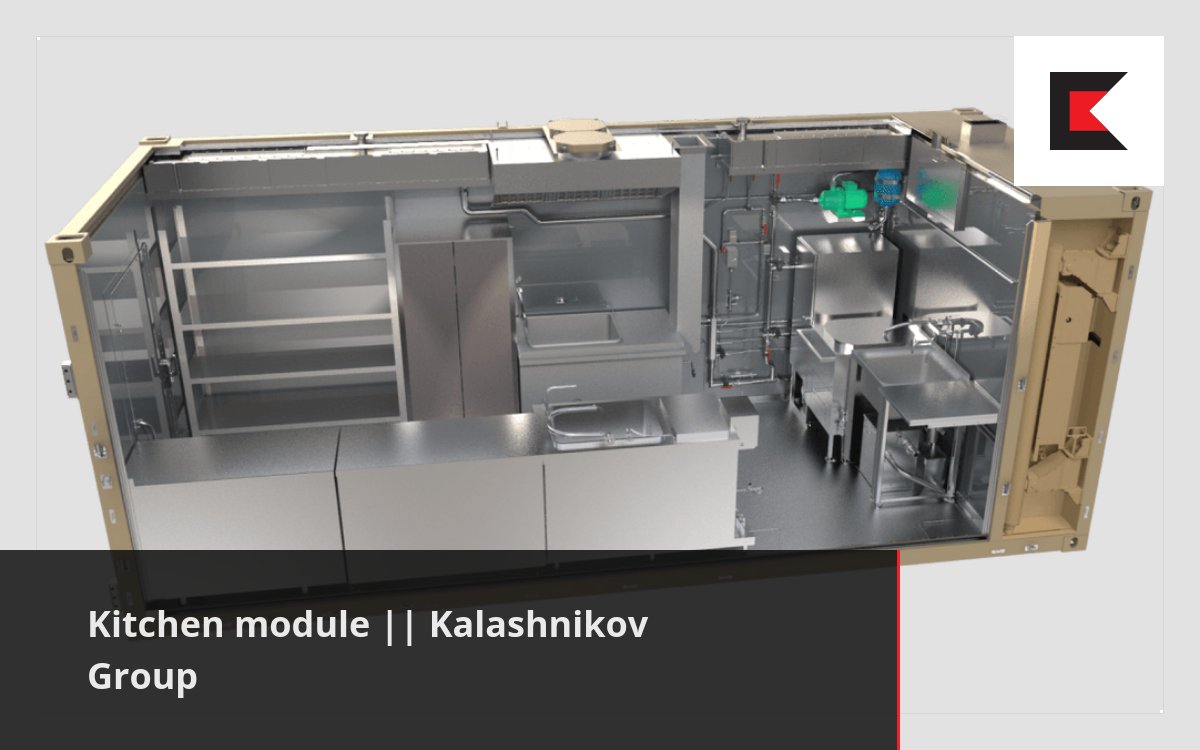

Kitchen module

The module is equipped with pots for three courses, cold and hot water tanks, workbench, refrigerator table, racks for storing food, and cooking equipment.
Dimensions, mm
6,058*2,438*2,350
Brand
Kalashnikov
Kalashnikov

Kitchen module

The module is equipped with pots for three courses, cold and hot water tanks, workbench, refrigerator table, racks for storing food, and cooking equipment.
Dimensions, mm
6,058*2,438*2,350
Brand
Kalashnikov
Kalashnikov

Description

Designed for cooking and providing meals for the unit's personnel.

Ready-made buildings are equipped with all the necessary equipment for cooking and storing food, as well as turnkey ventilation, sewage and water supply systems.

By agreement with the customer, both small, quickly erected modular canteens and large catering complexes for 100-300 people with a wide selection of shops (hot shop, meat and fish shop, cold rooms, warehouses and mess halls) can be produced and equipped.

Fields of application

Modular full-cycle canteens, food distribution stations, commissaries, buffets, kitchens, bakeries and cafes solve the problem of catering to employees and shift workers at remote sites.

Design features

  • The module can have two doors: one in the end wall and one in the side wall.
  • The interior is lined with stainless steel, which allows for treating the module with liquid disinfectants.
  • The furniture is selected in accordance with the overall dimensions, based on the space limitations of the containerized housing unit.

Features

Modern materials and insulators
Modern materials and insulators
Allow to maintain a comfortable temperature indoors while it is from +50 to -50 degrees Celsius outside. The operating temperature range can be expanded upwards depending on the climate in the area of use.
Vehicle-mounted (wheeled) option available
Vehicle-mounted (wheeled) option available
For organizing quick delivery of required modules when a location change is needed.
An electro-hydraulic loading and unloading device can be installed
An electro-hydraulic loading and unloading device can be installed
For unloading the container from the chassis without involving third-party organizations, cranes or other special equipment.

Characteristics

220 V
Mains voltage
125 l
Hot water tank
200 l
Water tank
Equipment per unit
Type KK 6.2 constant-volume containerized housing unit with life support systems
1
WATER SUPPLY SYSTEM
200 l tank for storage and distribution of cold water to cooking pots and dishwashing tubs
1
125 l hot water tank
1
piping system with fittings
1 set
BT-150N (or similar) heating block with a stovetop, sealed lid, oil jacket, steam vent valve, a built-in water heater and a spare parts kit.
1
BT-150Sh (or similar) heating block with a broiler, sealed lid, oil jacket, steam vent valve, a built-in water heater and a spare parts kit.
1
BT-80 (or similar) heating block with a sealed lid, steam vent valve, and a spare parts kit.
1
fuel system consisting of: fuel tank assembly, fuel lines, control panel, foot pump
1 set
microwave oven (no more than 1 kW)
2
hood
3
60-80 l plastic container for dishes with a lid
4
SPR-4 workbench
1
refrigerator table
1
wall-mounted closet for tools
1
rack
1
workbench with a sink
1
bread cabinet
1
tabletop mechanical can opener
1
MIM-80 electric meat grinder
1
tabletop electronic scales up to 10 kg
2
two-burner electric stove
1
30 l aluminum pot
1
5, 7 and 11 l aluminum pots
1 set
food waste bin
2
folding chair
2
cooking tools
1 set
220 V protected sockets, no fewer than
4
