Dishwashing module

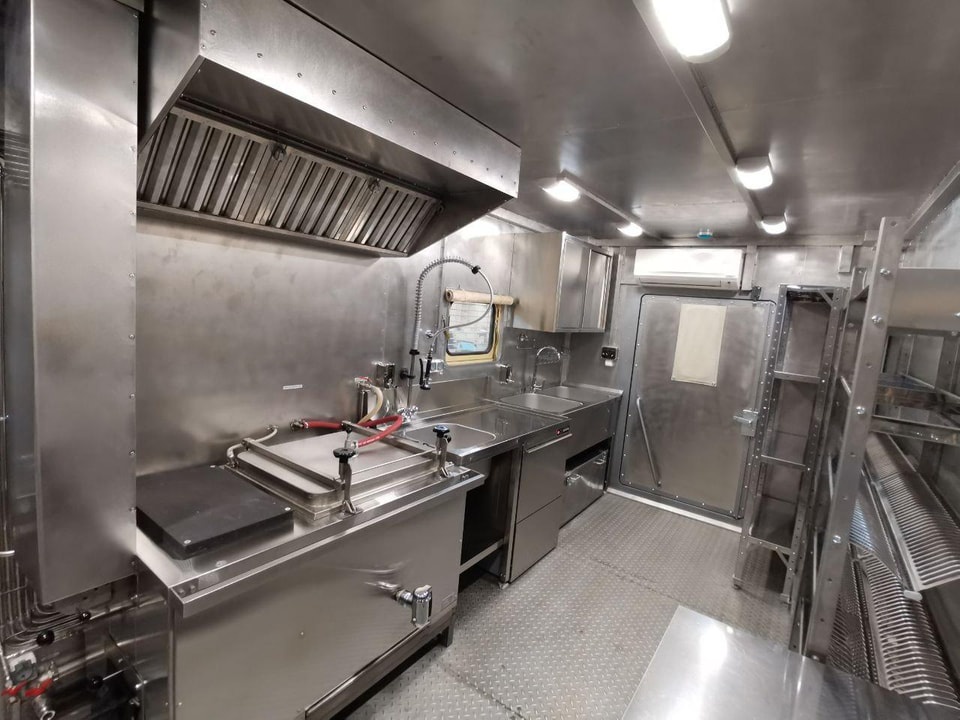

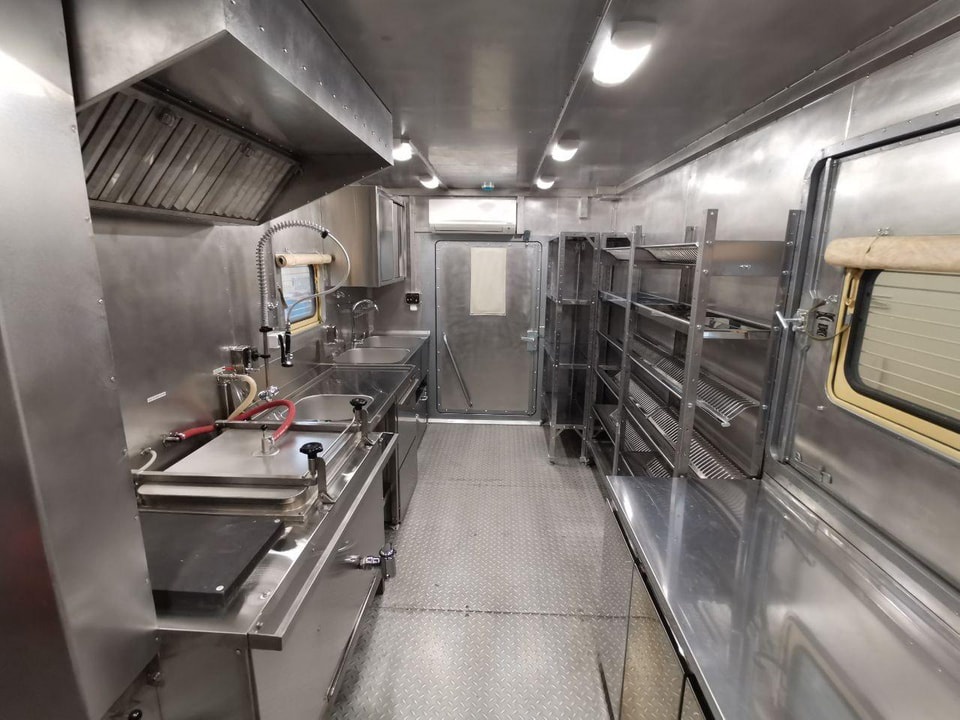

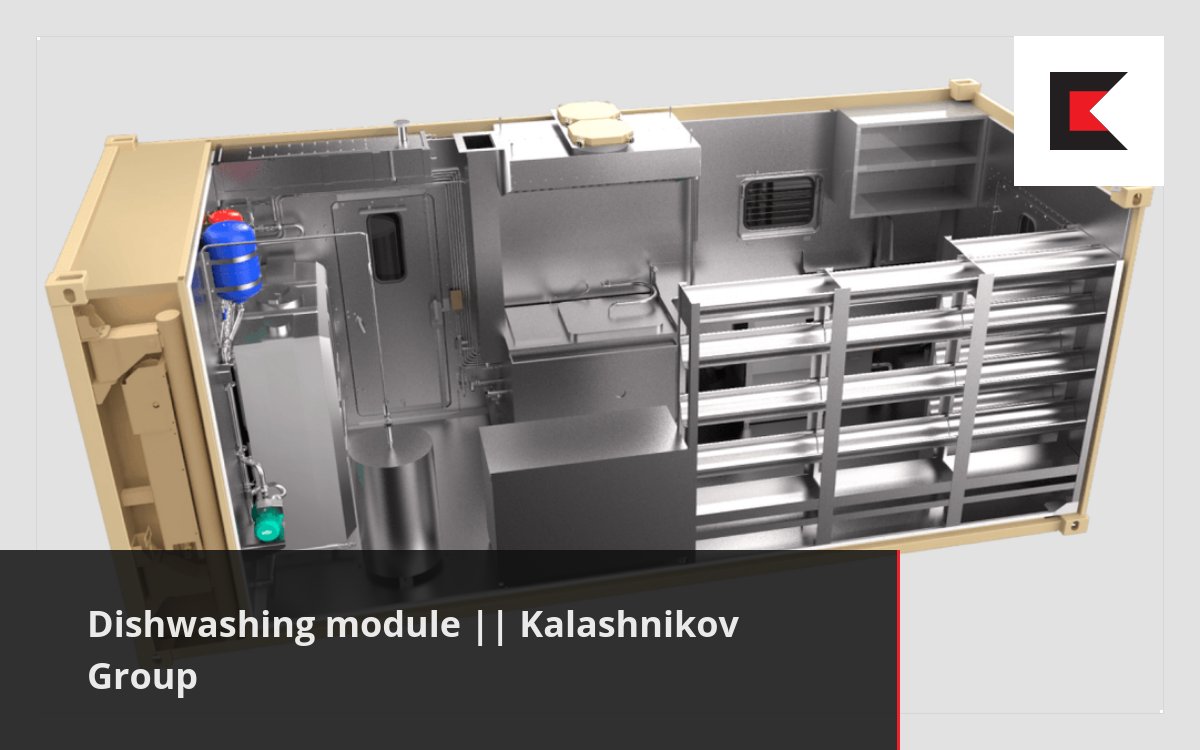

The module is equipped with a 1,000 l tank for cold water storage and distribution, a heating block for boiling water, a dishwasher, dishwashing tubs, racks and cabinets for storing dishes, a workbench and stainless steel drawers.
Dimensions, mm
6,058*2,438*2,350
Brand
Kalashnikov
Kalashnikov

Dishwashing module

The module is equipped with a 1,000 l tank for cold water storage and distribution, a heating block for boiling water, a dishwasher, dishwashing tubs, racks and cabinets for storing dishes, a workbench and stainless steel drawers.
Dimensions, mm
6,058*2,438*2,350
Brand
Kalashnikov
Kalashnikov

Description

The module is designed for washing and storing tableware.

Ready-made buildings are equipped with all the necessary equipment for cooking and storing food, as well as turnkey ventilation, sewage and water supply systems.

Fields of application

Modular full-cycle canteens, food distribution stations, commissaries, buffets, kitchens, bakeries and cafes solve the problem of catering to employees and shift workers at remote sites.

Design features

  • The module can have two doors: one in the end wall and one in the side wall.
  • The interior is lined with stainless steel, which allows for treating the module with liquid disinfectants.
  • The furniture is selected in accordance with the overall dimensions, based on the space limitations of the containerized housing unit.

Features

Modern materials and insulators
Modern materials and insulators
Allow to maintain a comfortable temperature indoors while it is from +50 to -50 degrees Celsius outside. The operating temperature range can be expanded upwards depending on the climate in the area of use.
Vehicle-mounted (wheeled) option available
Vehicle-mounted (wheeled) option available
For organizing quick delivery of required modules when a location change is needed.
An electro-hydraulic loading and unloading device can be installed
An electro-hydraulic loading and unloading device can be installed
For unloading the container from the chassis without involving third-party organizations, cranes or other special equipment.

Characteristics

220 V
Mains voltage
125 l
Hot water tank
1,000 l
Water tank
Equipment per unit
Type KK 6.2 constant-volume containerized housing unit with life support systems
1
WATER SUPPLY SYSTEM
1,000 l main tank for storage and distribution of cold water
1
Heat block with a stove, sealed lid, oil jacket, steam vent valve, a built-in BT-150N water heater (or similar) and a spare parts kit.
1
125 l hot water tank
1
hood
1
piping system with fittings
1 set
I/O water control panel
1
fuel system consisting of: fuel tank assembly, fuel lines, control panel, foot pump
1 set
TECHNICAL EQUIPMENT AND FURNITURE
SPMF-7-1 dishwashing table
1
MPK-500F-01-230 dishwasher
1
2-compartment dishwashing tub
1
workbench with a shelf and drawers
1
wall-mounted closet for tools
1
rack with dividers for storing dishes
2
rack for tableware
2
food waste bin
2
folding chair
2
dunnage rack
2
220 V protected sockets, no fewer than
4
MOK-300U potato peeler
1
