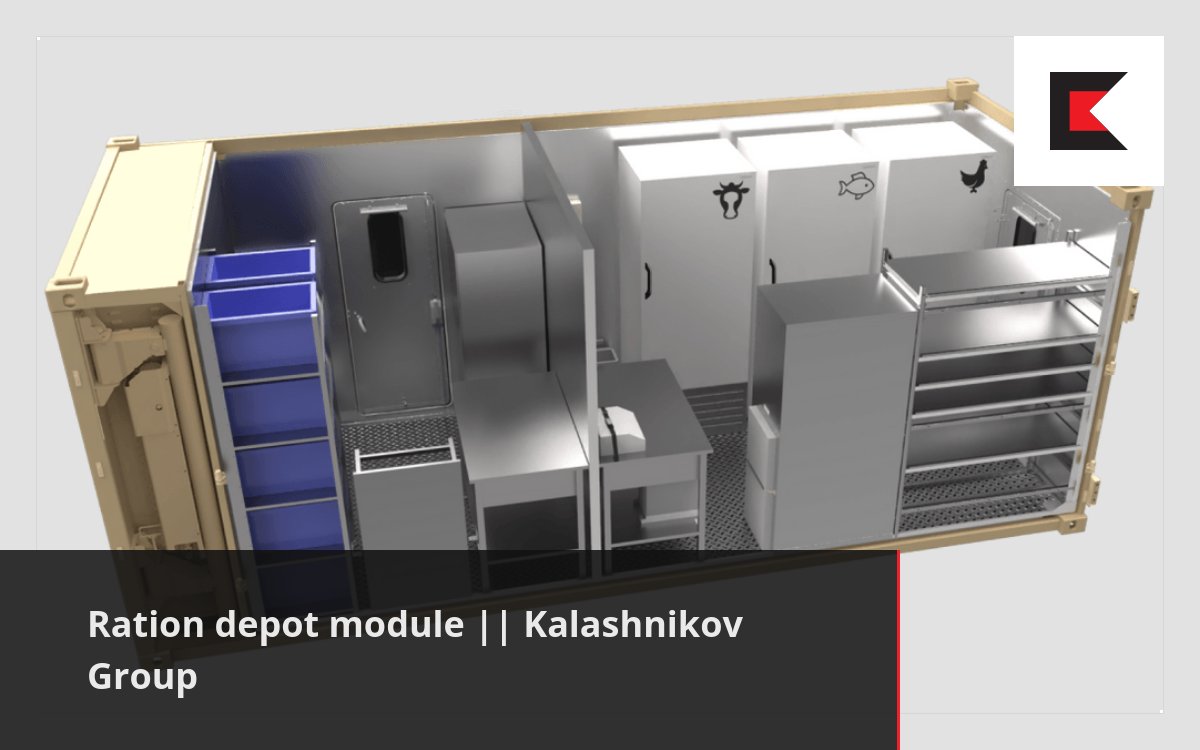

Ration depot module

The module is equipped with bread cabinets, workbench for storing dry goods, dunnage racks, scales, racks for storing provisions, and refrigerators.
Dimensions, mm
6,058*2,438*2,350
Brand
Kalashnikov
Kalashnikov

Ration depot module

The module is equipped with bread cabinets, workbench for storing dry goods, dunnage racks, scales, racks for storing provisions, and refrigerators.
Dimensions, mm
6,058*2,438*2,350
Brand
Kalashnikov
Kalashnikov

Description

Designed for storage of food stocks (fresh, frozen or canned) in the field, as well as rationed delivery of food to the kitchen module for processing.

Design features

  • The furniture is selected in accordance with the overall dimensions, based on the space limitations of the containerized housing unit.
  • Can be equipped according to the customer's requirements.

Fields of application

Prefabricated warehouses are strong and durable enough for long and successful operation, are affordable, and require less time to erect.

The available materials and technology allow to build prefabricated warehouses or hangars for any food stock type and any production requirements for any storage period (seasonal or permanent).

Features

Modern materials and insulators
Modern materials and insulators
Allow to maintain a comfortable temperature indoors while it is from +50 to -50 degrees Celsius outside. The operating temperature range can be expanded upwards depending on the climate in the area of use.
Vehicle-mounted (wheeled) option available
Vehicle-mounted (wheeled) option available
For organizing quick delivery of required modules when a location change is needed.
An electro-hydraulic loading and unloading device can be installed
An electro-hydraulic loading and unloading device can be installed
For unloading the container from the chassis without involving third-party organizations, cranes or other special equipment.

Characteristics

220 V
Mains voltage
0.6-0.7 cu.m
Refrigerator volume no less than
Equipment per unit
Type KK 6.2 constant-volume containerized housing unit with life support systems
1
EQUIPMENT AND FURNITURE
bread cabinet
2
workbench for storing dry goods
2
Medium-temperature cold storage chest (up to minus 6-8°C), no less than 0.6-0.7 cu.m
2
Medium-temperature cold storage chest (up to minus 6-8°C), no less than 0.6-0.7 cu.m (for fish)
1
modular provision rack
1
modular rack with drawers
1
garbage bin
1
dunnage rack
2
electronic platform scales up to 100 kg
1
tabletop electronic scales up to 10 kg
1
folding chair
1
cooking tools
1
axe
1
medical kit
1
220 V protected sockets, no fewer than
5
