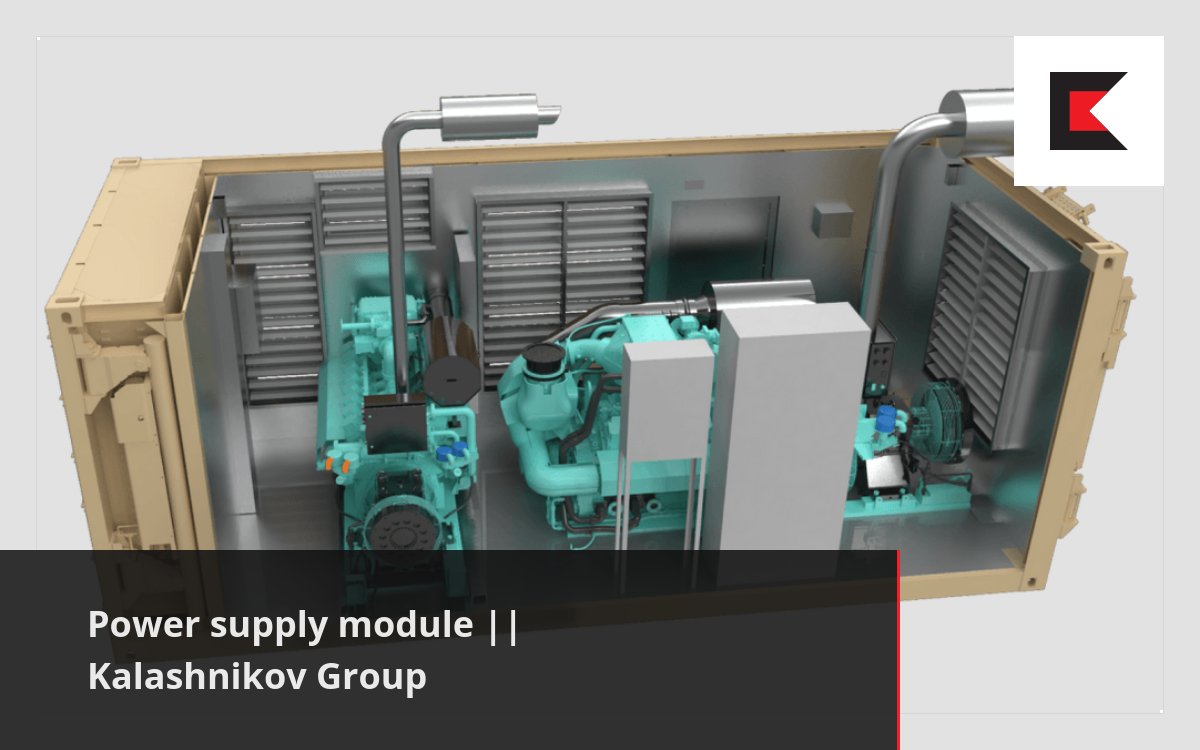

Power supply module

The module is equipped with a power center based on two diesel power plants complete with switchboards, synchronized to work in parallel.
Dimensions, mm
6,058*2,438*2,350
Diesel power plant
200 kW
Brand
Kalashnikov
Kalashnikov

Power supply module

The module is equipped with a power center based on two diesel power plants complete with switchboards, synchronized to work in parallel.
Dimensions, mm
6,058*2,438*2,350
Diesel power plant
200 kW
Brand
Kalashnikov
Kalashnikov

Description

Designed to supply power to advanced operational base facilities. The configuration can be changed according to the customer's specifications.Β

Design features

The Energy Block Module is an all-welded container with a diesel or gas-fueled power plant inside, with all the necessary auxiliary technological systems, fully ready to use.Β

Fields of application

Necessary for the rapid organization of power supply to workspaces and homes away from power lines.

Features

Modern materials and insulators
Modern materials and insulators
Allow to maintain a comfortable temperature indoors while it is from +50 to -50 degrees Celsius outside. The operating temperature range can be expanded upwards depending on the climate in the area of use.
Vehicle-mounted (wheeled) option available
Vehicle-mounted (wheeled) option available
For organizing quick delivery of required modules when a location change is needed.
An electro-hydraulic loading and unloading device can be installed
An electro-hydraulic loading and unloading device can be installed
For unloading the container from the chassis without involving third-party organizations, cranes or other special equipment.

Characteristics

200 kW
Diesel power plant
100 kW
Diesel power plant
850 and 480 l
2 fuel tanks
Equipment per unit
Type KK 6.2 constant-volume containerized housing unit with life support systems
1
EQUIPMENT
200 kW diesel power plant with a set of standard cables, exhaust system, spare parts and increased fuel tank capacity of 850 liters
1
100 kW diesel power plant with a set of standard cables, exhaust system, spare parts and increased fuel tank capacity of 480 liters
1
Switchgear for control of industrial network inputs and power plant units with elements for displaying normal and emergency status of power units
1
main switchboard
1
forced supply and exhaust ventilation system
1
socket panel for distributing electrical power to three-phase trunk lines
1
camp's outdoor power supply system
1 set (per 2 modules)
dielectric rubber mats
3
dielectric rubber gloves
3 pairs
tools (shovel, axe, crowbar, two-man saw)
1 set
