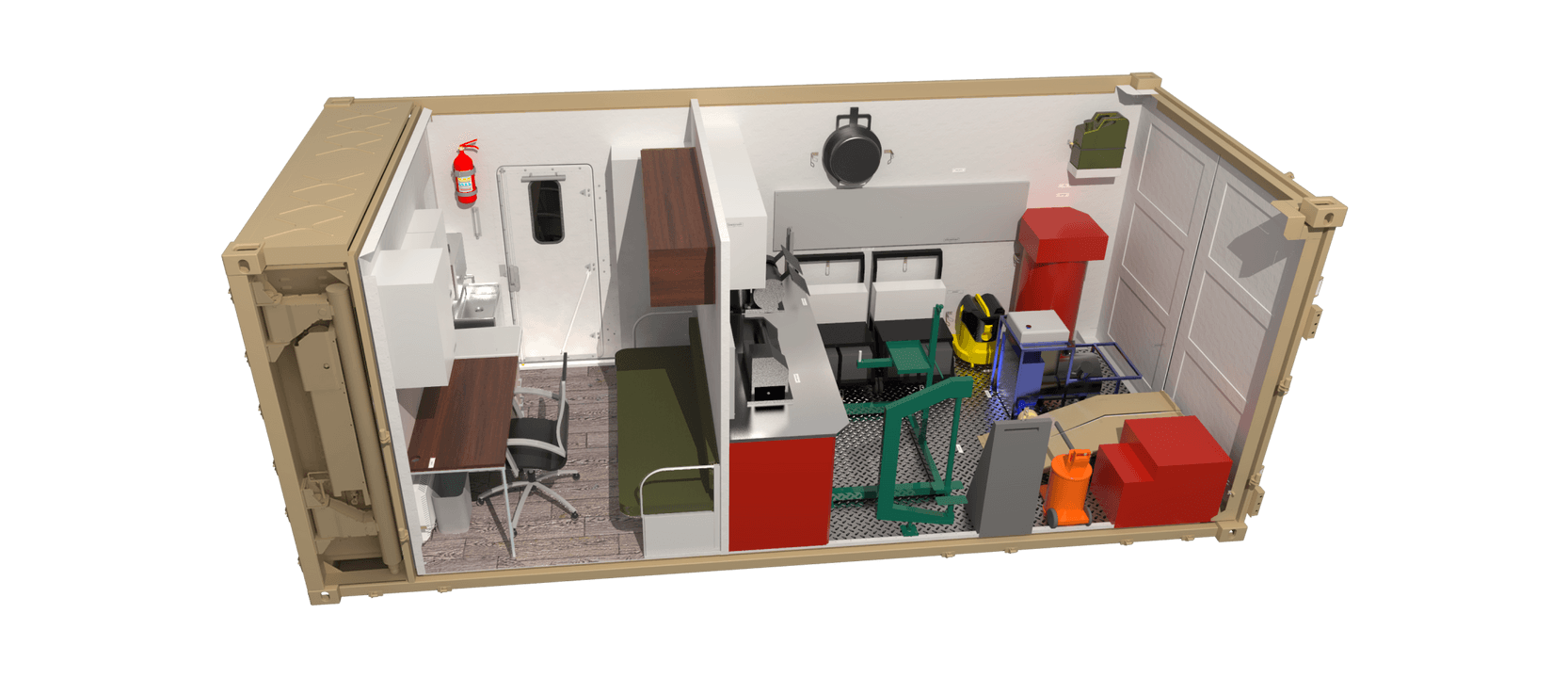

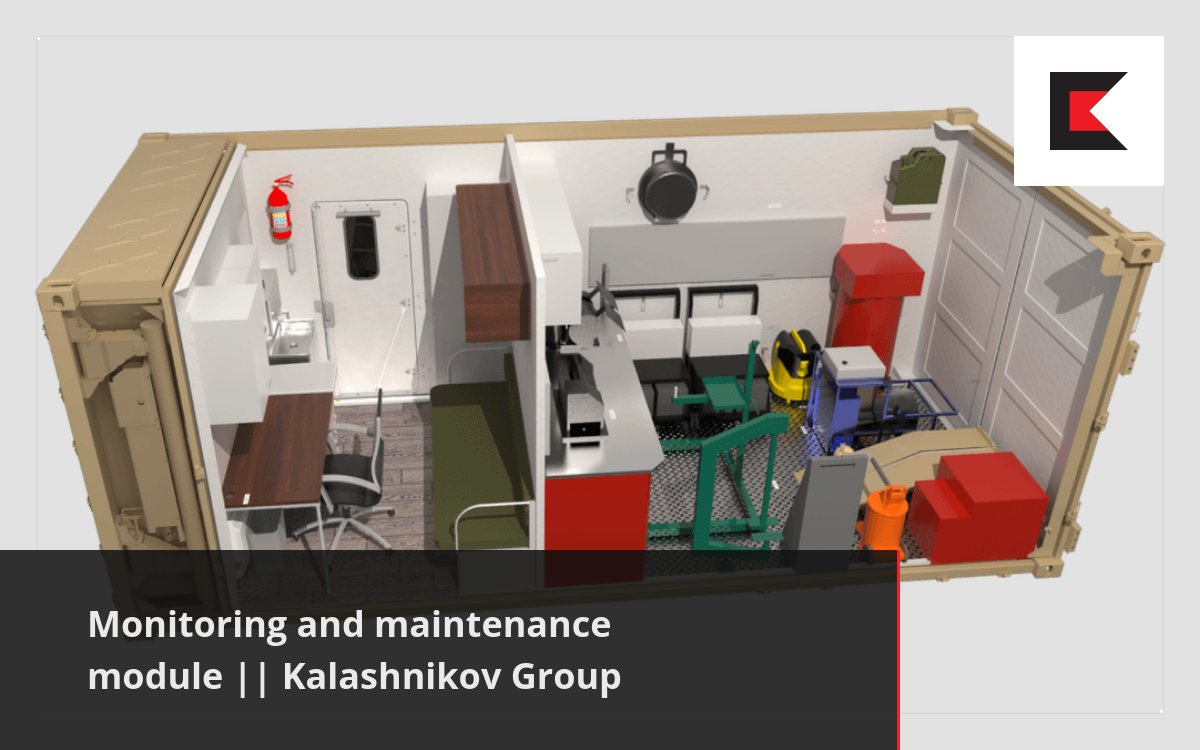

Monitoring and maintenance module

The module is equipped with all the necessary tools and accessories. Machines, tools and other equipment can be installed.
Capacity
up to 2 people
Dimensions, mm
6,058*2,438*2,350
Brand
Kalashnikov
Kalashnikov

Monitoring and maintenance module

The module is equipped with all the necessary tools and accessories. Machines, tools and other equipment can be installed.
Capacity
up to 2 people
Dimensions, mm
6,058*2,438*2,350
Brand
Kalashnikov
Kalashnikov

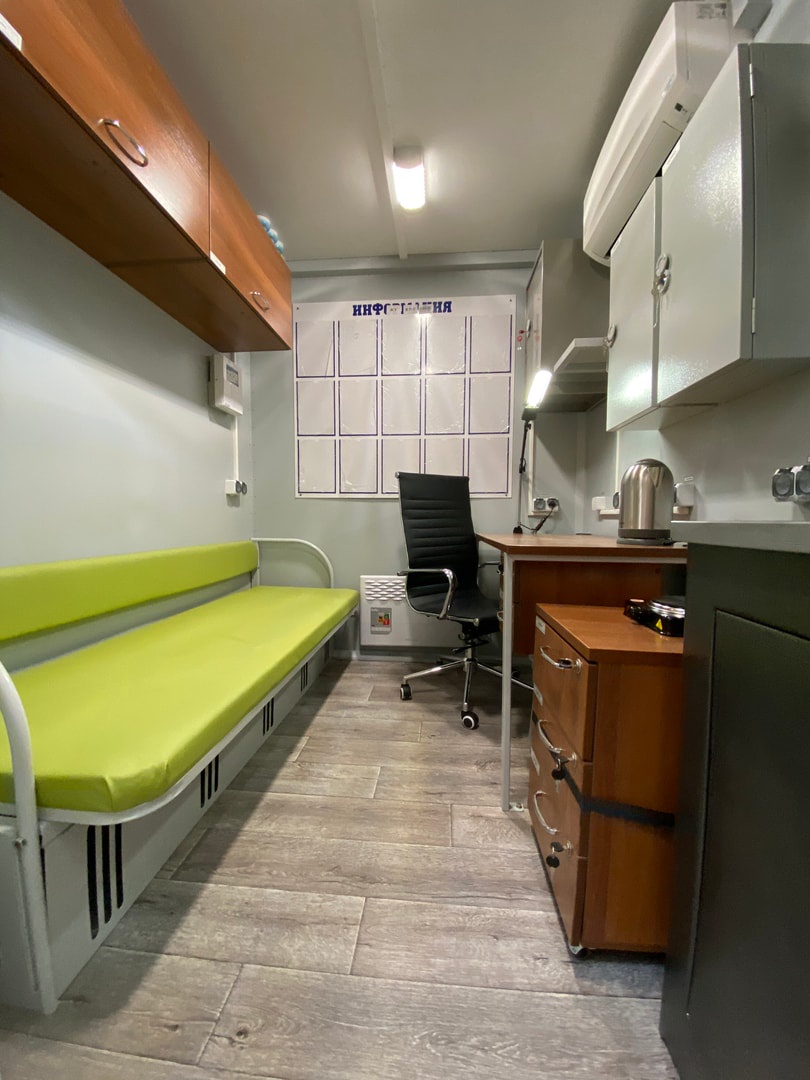

Description

Designed for service and rest of the vehicle maintenance squad, as well as for providing technical inspection, maintenance and current repairs of vehicles.

Placed in a containerized housing unit, connected to a tent by a mudroom. The design and configuration of the module can be changed at the customer's request.

Fields of application

The monitoring and maintenance module is designed for convenient organization of working space and for doing mechanical work and maintenance far from populated areas, on construction, exploration, or drilling sites, when there is a need to frequently change the location.

Design features

  • The furniture is selected in accordance with the overall dimensions, based on the space limitations of the containerized housing unit.
  • The monitoring and maintenance room module is able to withstand frequent relocation on a chassis or sled.

Features

Modern materials and insulators
Modern materials and insulators
Allow to maintain a comfortable temperature indoors while it is from +50 to -50 degrees Celsius outside. The operating temperature range can be expanded upwards depending on the climate in the area of use.
Vehicle-mounted (wheeled) option available
Vehicle-mounted (wheeled) option available
For organizing quick delivery of required modules when a location change is needed.
An electro-hydraulic loading and unloading device can be installed
An electro-hydraulic loading and unloading device can be installed
For unloading the container from the chassis without involving third-party organizations, cranes or other special equipment.

Characteristics

up to 2 people
Capacity
220 V
Mains voltage
2 compartments
For the employee and for tool storage
Equipment per unit
Type KK 6.2 constant-volume containerized housing unit with life support systems
1
EQUIPMENT AND FURNITURE
desk (workstation) with a space for a telephone set
1
wheeled drawer
1
metal closet for documentation
1
closet for wrenches
2
wall-mounted chipboard closet
2
rotating chair
1
documentation stand with 15 A4 pockets
1
folding chair
2
Lifting bed with a chest
1
electric heater
2
wall
1
closet
1
wall-mounted shelf
1
table lamp
3
single-burner electric stove
1
washbasin with a drawer and water heating
1
mirror
1
shelf
1
digital wall clock, readable in low light
1
wall-mounted internal thermometer
1
detachable external thermometer
1
220 V protected sockets, no fewer than
8
electric kettle (no more than 2.5 kW)
1
garbage bin
1
tool bench
1
tool cabinet
2
tool organizer
2
wiping rag box (500*500 mm), red, metal
1
TECHNICAL EQUIPMENT
service ramp for checking vehicles, 20 tons capacity
1
STOP/Control sign with a stand
1
mechanical barrier
1
FIRE SUPPRESSION EQUIPMENT
diesel-powered water pump with two hoses
1
20 m fire hose
2
handheld fire hose nozzle
2
tools and accessories kit (Appendix 14)
1
TENT
heater (Appendix 12)
1
air conditioning unit (Appendix 12)
1
modular flooring
6.25 sq.m
set of pipes and accessories for one solid fuel furnace
1 set
