Surveillance group module

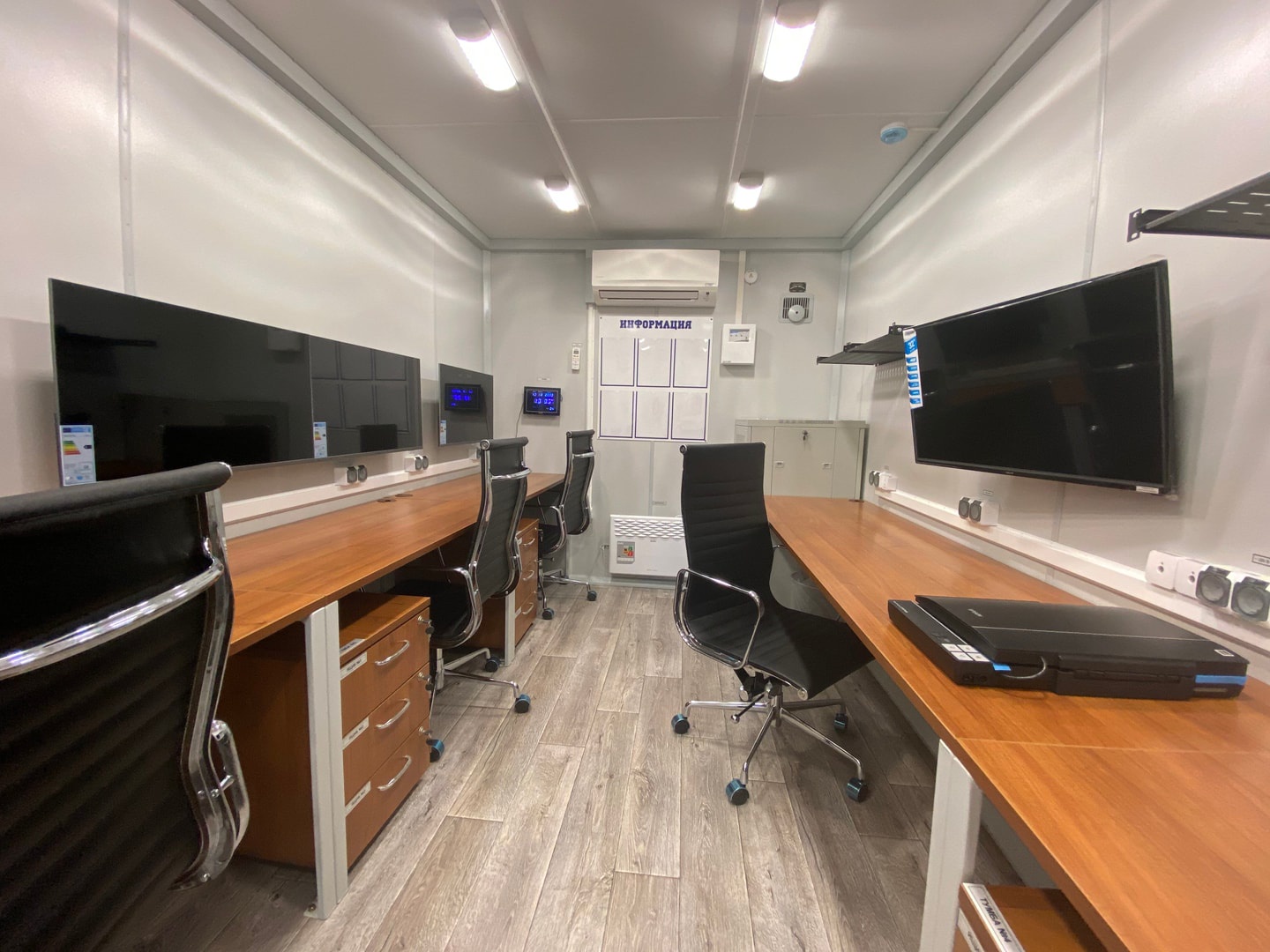

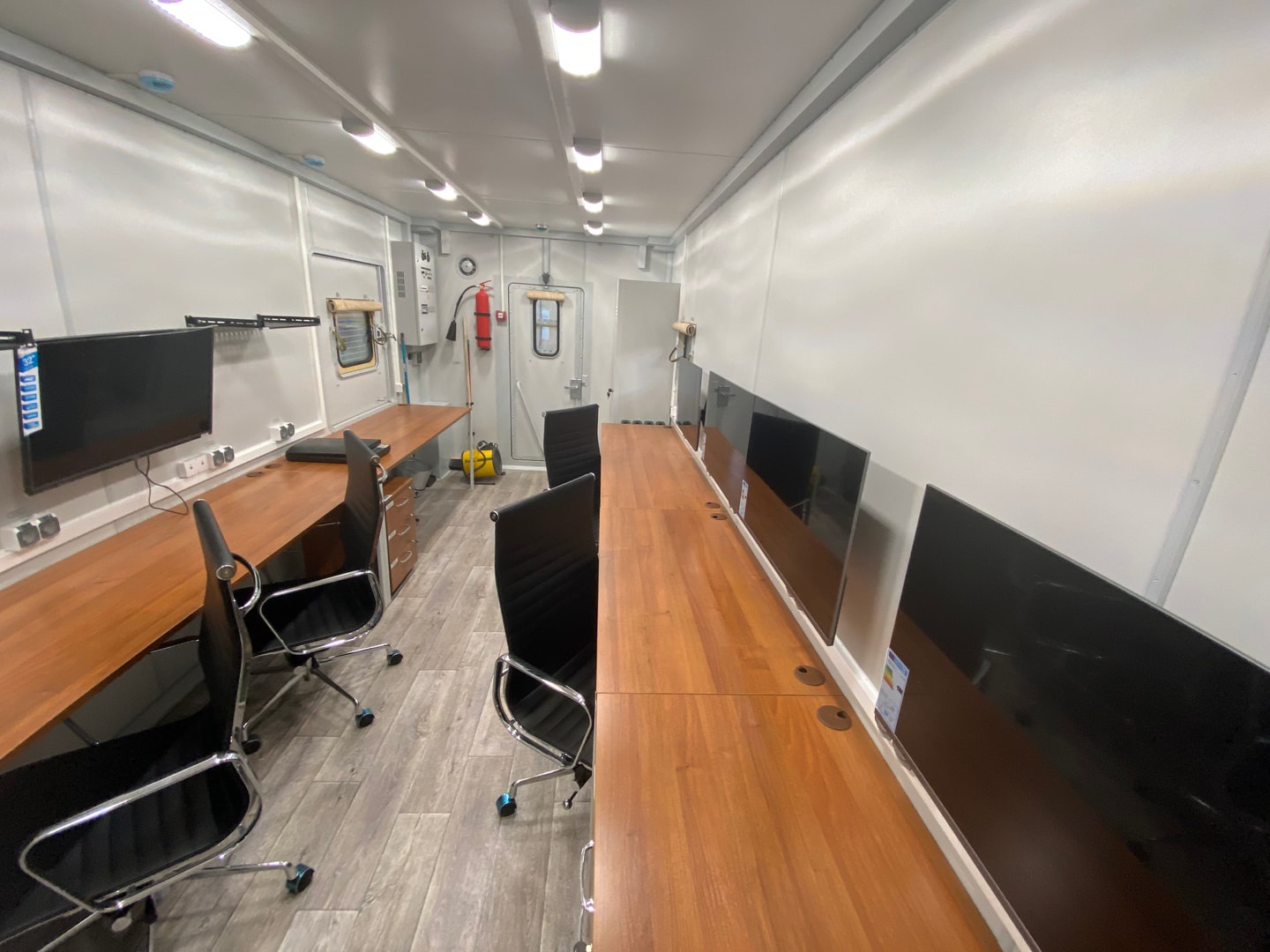

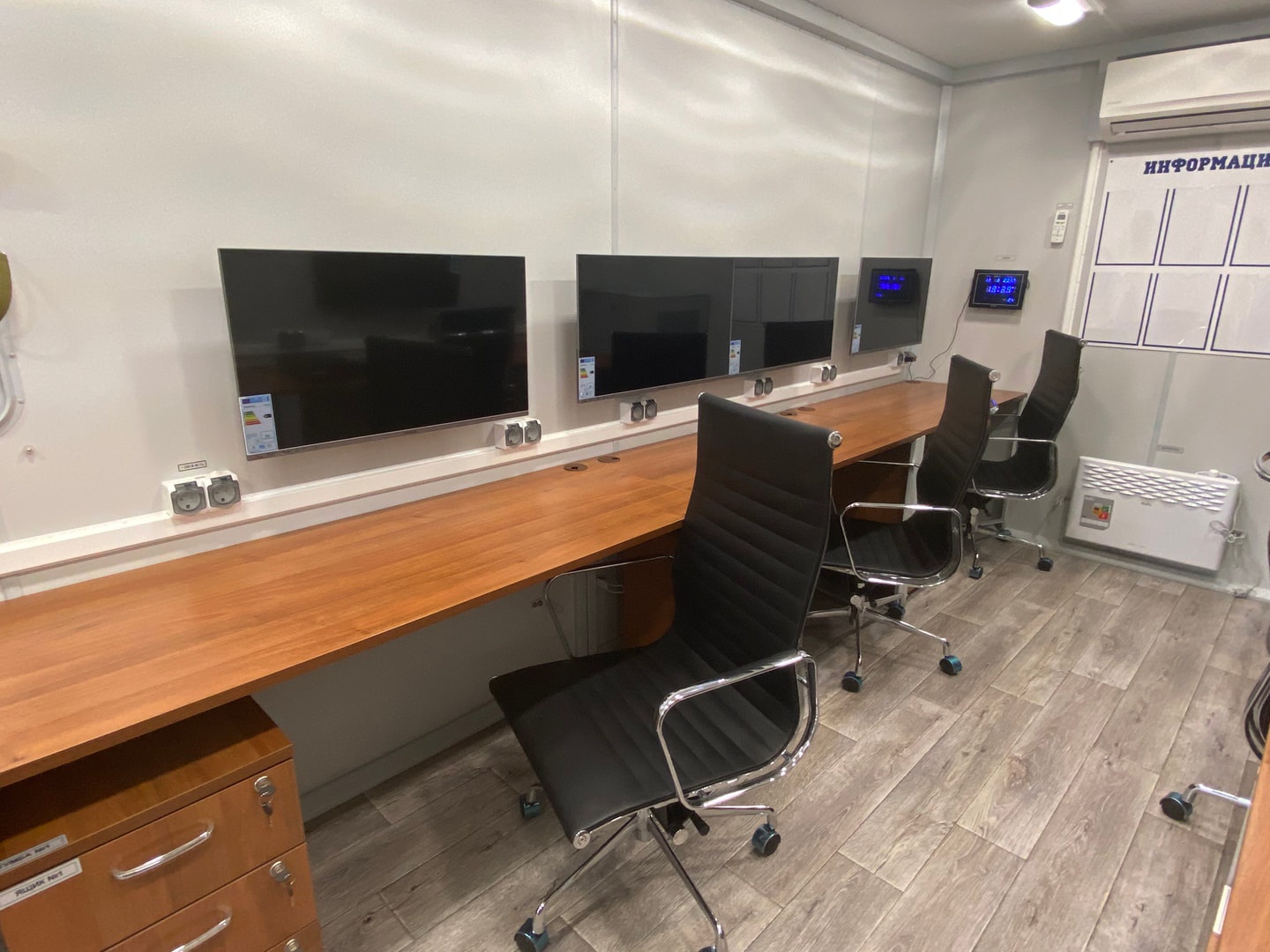

The module is equipped with workstations, a rack for equipment, a closet, a stand for documentation, and intercom equipment.
Capacity
up to 6 people
Dimensions, mm
6,058*2,438*2,350
Brand
Kalashnikov
Kalashnikov

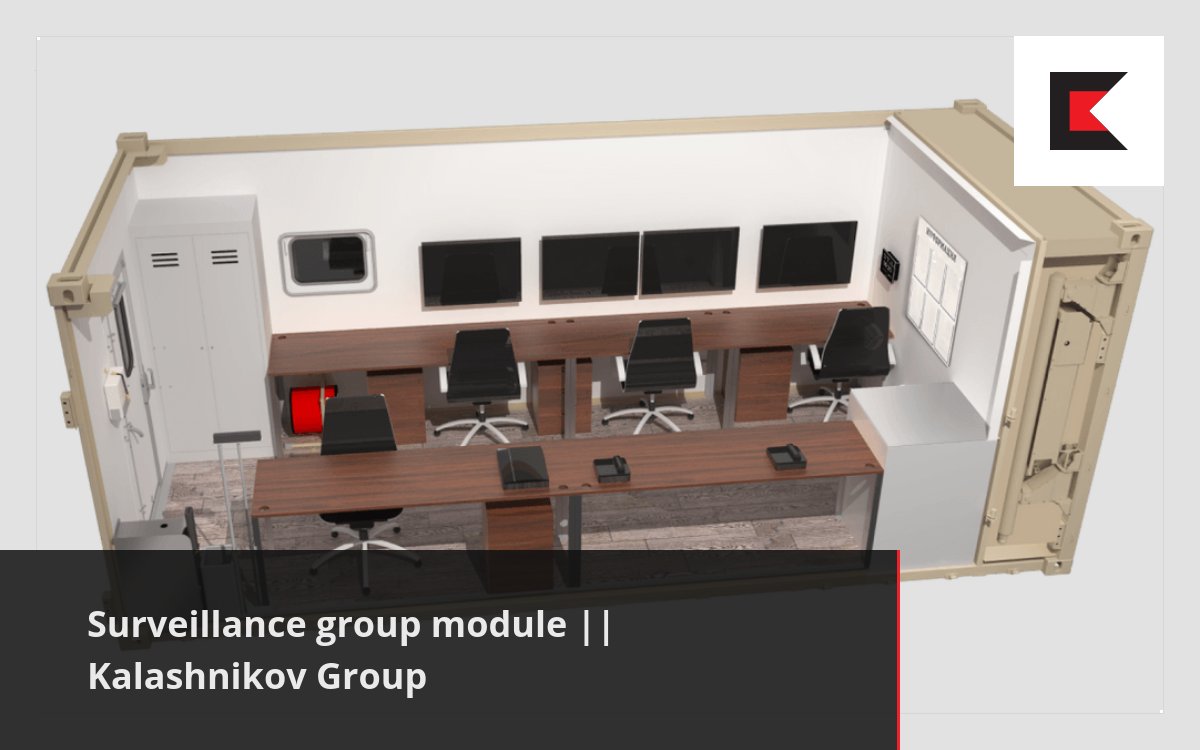

Surveillance group module

The module is equipped with workstations, a rack for equipment, a closet, a stand for documentation, and intercom equipment.
Capacity
up to 6 people
Dimensions, mm
6,058*2,438*2,350
Brand
Kalashnikov
Kalashnikov

Description

Designed to accommodate the workstations of task force or monitoring group employees.

Fields of application

Modular operator's room can be equipped following the customer's requirements in accordance with the process management needs. Options include a special configuration for facilities with high fire hazard.

Design features

  • The entrance door is located in the back wall of the container.
  • The furniture is selected in accordance with the overall dimensions, based on the space limitations of the containerized housing unit.
  • TV panels can be linked to a shared telecommunication network with central control from a control group module.
  • Everything necessary for employees involved in process control is provided, including an operator's room, server rooms, and hardware rooms.
  • The typical solution features ventilation, heating, air conditioning, fire and security alarm system.
  • The room can be equipped with a gaseous fire suppression system and autonomous lighting, heating and water supply systems.

The use of autonomous utility sources makes it possible to use modular operator stations in remote and inaccessible places in military and humanitarian deployment, as well as rotational work.

Features

Modern materials and insulators
Modern materials and insulators
Allow to maintain a comfortable temperature indoors while it is from +50 to -50 degrees Celsius outside. The operating temperature range can be expanded upwards depending on the climate in the area of use.
Vehicle-mounted (wheeled) option available
Vehicle-mounted (wheeled) option available
For organizing quick delivery of required modules when a location change is needed.
An electro-hydraulic loading and unloading device can be installed
An electro-hydraulic loading and unloading device can be installed
For unloading the container from the chassis without involving third-party organizations, cranes or other special equipment.

Characteristics

220 V
Mains voltage
3
Permanent workstations
Equipment per unit
Type KK 6.2 constant-volume containerized housing unit with life support systems
1
EQUIPMENT AND FURNITURE
3-workstation extended-length desk
1
extended-length desk with a space for a telephone set
1
wheeled drawer
4
rotating chair
4
closet
1
server rack
1
electric fan heater
1
electric heater
1
30+ inch TV panel
1
Shelf mount for peripheral equipment (0.5*0.3*0.3 m)
3
digital wall clock, readable in low light
1
30+ inch detachable display
4
A4 scanner
1
documentation stand
1
garbage bin
1
220 V protected sockets, no fewer than
13
