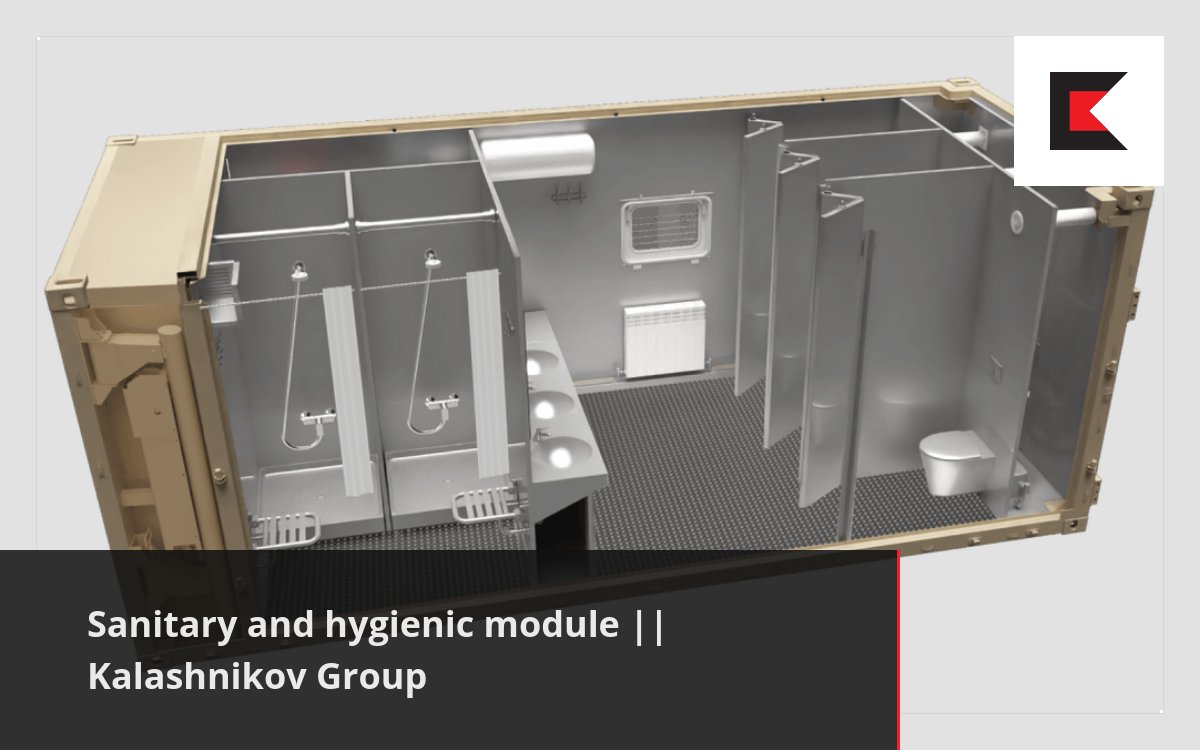

Sanitary and hygienic module
Sanitary and hygienic module
Commercial quotation

Sanitary and hygienic module

The module is supplied with a 300 l water heater, sanitary equipment, water heating system, ventilation and wastewater removal systems.
Dimensions, mm
6,058*2,438*2,350
Brand
Kalashnikov
Kalashnikov

Sanitary and hygienic module

The module is supplied with a 300 l water heater, sanitary equipment, water heating system, ventilation and wastewater removal systems.
Dimensions, mm
6,058*2,438*2,350
Brand
Kalashnikov
Kalashnikov

Description

Design features

  • Block containers are equipped with water tanks and can be operated in a fully autonomous mode.
  • Containers can be supplied with extra equipment such as floor heating, air conditioning, etc.
  • Options include finishing the interior with stainless steel, which allows for full treatment of the module with liquid disinfectants.
  • The furniture is selected in accordance with the overall dimensions, based on the space limitations of the containerized housing unit.

Designed for sanitary and hygienic procedures.

Placed in a containerised housing unit; includes all necessary equipment for comfortable and safe use of the module.

Fields of application

Used when equipping field and tourist camps to sanitary and hygienic norms for comfortable accommodation.

Features

Modern materials and insulators
Modern materials and insulators
Allow to maintain a comfortable temperature indoors while it is from +50 to -50 degrees Celsius outside. The operating temperature range can be expanded upwards depending on the climate in the area of use.
Vehicle-mounted (wheeled) option available
Vehicle-mounted (wheeled) option available
For organizing quick delivery of required modules when a location change is needed.
An electro-hydraulic loading and unloading device can be installed
An electro-hydraulic loading and unloading device can be installed
For unloading the container from the chassis without involving third-party organizations, cranes or other special equipment.

Characteristics

up to 5
Capacity people at a time
300 l
Water heater
220 V
Mains voltage
Equipment per unit
Type KK 6.2 constant-volume containerized housing unit with life support systems
1
EQUIPMENT
washtub kit
3
toilet with a sewage system (in a stall with a door)
3
shower with a tray
2
300 l water heater
1
wall-mounted mirror
3
shelf for toiletries
5
toilet paper holder
3
folding seat (in the shower compartment)
2
3-hook coat rack
4
garbage bin with a foot pedal
3
water heating system
1
piping system with fittings
1 set
220 V protected sockets, no fewer than
3
