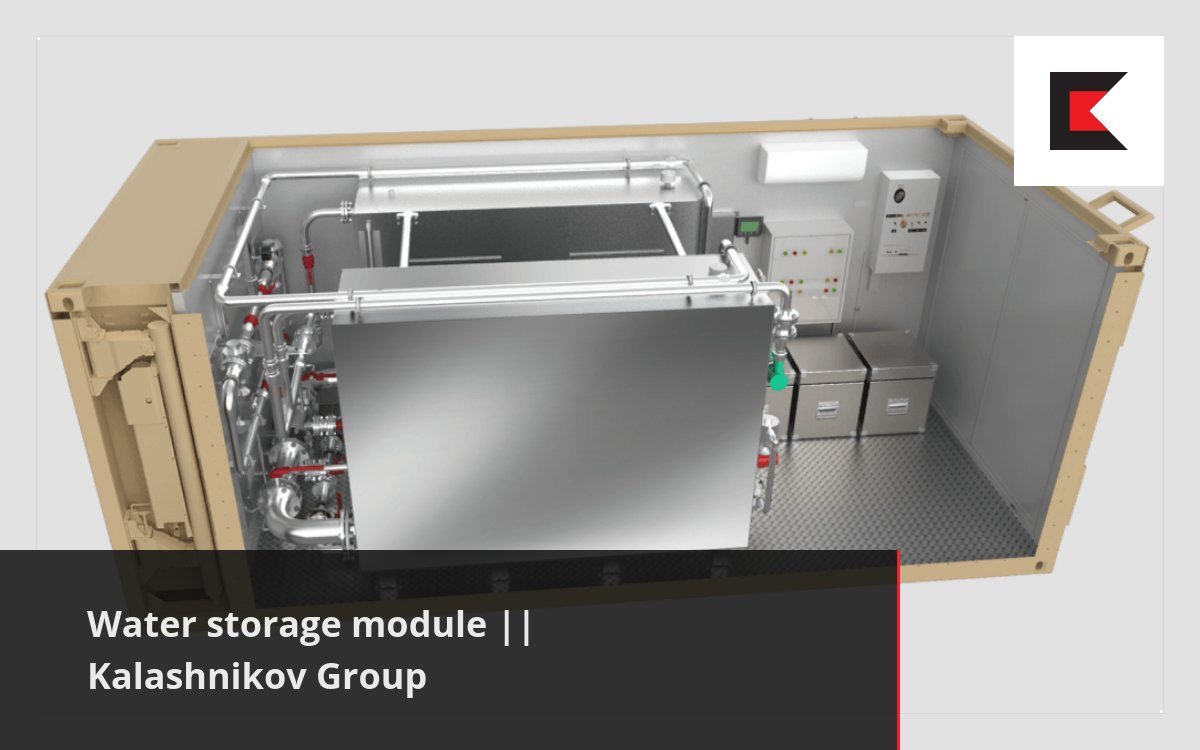

Water storage module

The module is equipped with a system of stainless food steel tanks with a total volume of 5 cu.m, a water disinfection system, and a panel for filling from an external source and handing water out to consumers.

Brand

Kalashnikov

Water storage module

Brand

Kalashnikov

Commercial quotation

Description

Design features

Water storing rage tanks and I/O water control panels are connected via a piping system complete with pumps and valves to circulate water through the UV disinfection system, for filling the system with water, and for dispensing pressurized water (pressure determined at the design stage) to external consumers.
Water storage tanks have openings (hatches) for disposal of sediments.
System for water drainage from all tanks, pipelines and other devices.
The interior is lined with stainless steel, which allows for treating the module with liquid disinfectants.

Placed in a containerized housing unit; designed for storage of drinking water, including in 1.5 l plastic bottles, and handing it out to consumers.

Fields of application

Used to equip field, tourist and rotation camps for the safe storage of drinking water.

Features

Modern materials and insulators

Allow to maintain a comfortable temperature indoors while it is from +50 to -50 degrees Celsius outside. The operating temperature range can be expanded upwards depending on the climate in the area of use.

Vehicle-mounted (wheeled) option available

For organizing quick delivery of required modules when a location change is needed.

An electro-hydraulic loading and unloading device can be installed

For unloading the container from the chassis without involving third-party organizations, cranes or other special equipment.

Characteristics

75 1.5 l bottles

Regular handout stock

up to 5,000

Tank system holds liters of water

220 V

Mains voltage

Equipment per unit

Type KK 6.2 constant-volume containerized housing unit with life support systems

EQUIPMENT

system of food-grade stainless steel tanks with a total volume of at least 5,000 l

piping for external water supply system with heating cable

1 set (per 2 modules)

panel for filling from an external source and for handing water out to consumers

UV water disinfection system

rack for storing 75 1.5 l plastic water bottles during transportation

recirculation pump

pump for filling the module from an external source

piping system with fittings

1 set

main electric pumping units

mechanical filters

dielectric rubber mats

dielectric rubber gloves

3 pairs

220 V protected sockets, no fewer than

220 V protected socket (in the equipment compartment)

spare parts kit
