Module for storing bulk stocks of special items
Module for storing bulk stocks of special items
Commercial quotation
Commercial quotation
storage-groups-weapons (1).png

Module for storing bulk stocks of special items

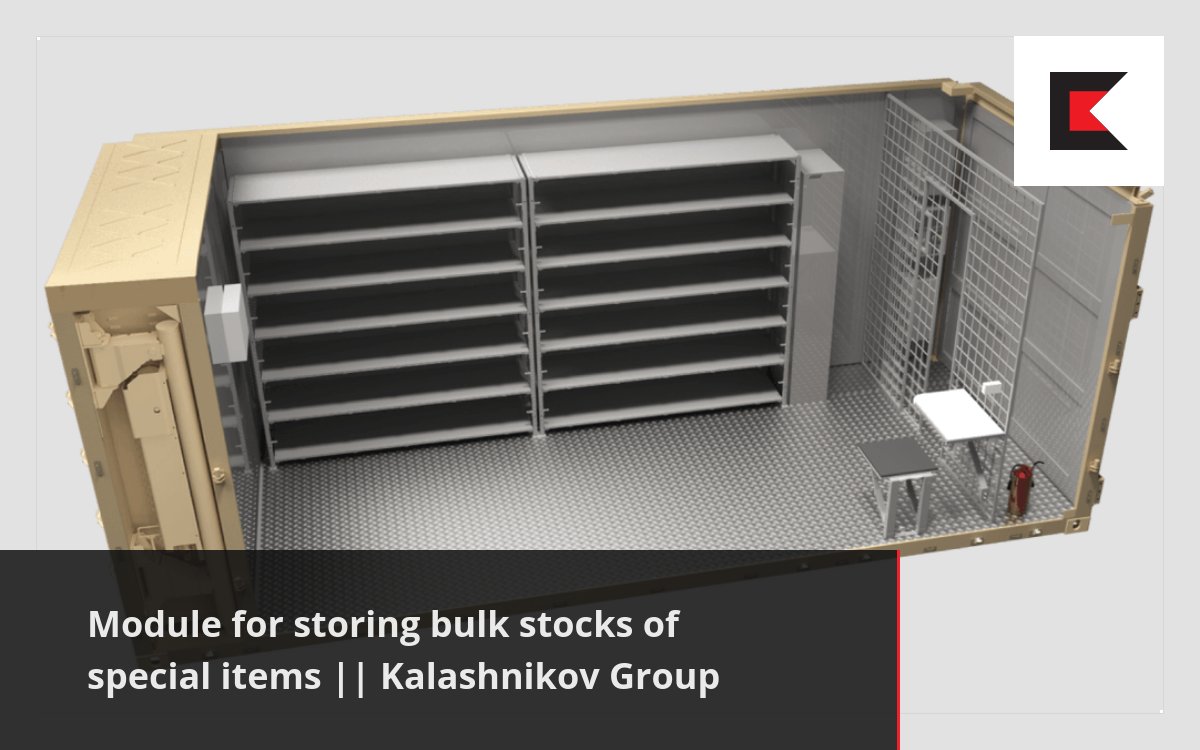

The module is equipped with racks with a load capacity up to 200 kg, security alarm and intrusion protection.
Dimensions, mm
6,058*2,438*2,350
Brand
Kalashnikov
Kalashnikov

Module for storing bulk stocks of special items

The module is equipped with racks with a load capacity up to 200 kg, security alarm and intrusion protection.
Dimensions, mm
6,058*2,438*2,350
Brand
Kalashnikov
Kalashnikov

Description

Designed for storing bulk stocks of items requiring special storage conditions (fuel and lubricants, pyrotechnical devices, disinfectants, toxic substances, as well as material assets. Configuration can be changed by agreement with the customer.

Design features

  • 1 mm thick steel internal module lining.
  • Lighting fixtures in fireproof version (blackout measures in regular version only).
  • Racks with a load capacity of at least 200 kg can be adjusted for number of shelves and their height.
  • The door can be sealed up and locked from the outside with a padlock.
  • Options include a vestibule with a barred wall and a sliding barred door to enter the main compartment.
  • Alarm contact sensors can be installed on the outer swing doors, while the alarm switch can be placed in the main compartment at a sufficient distance from the barred wall to exclude disabling the alarm from the vestibule.
  • The furniture is selected in accordance with the overall dimensions, based on the space limitations of the containerized housing unit.

Features

Modern materials and insulators
Modern materials and insulators
Allow to maintain a comfortable temperature indoors while it is from +50 to -50 degrees Celsius outside. The operating temperature range can be expanded upwards depending on the climate in the area of use.
Vehicle-mounted (wheeled) option available
Vehicle-mounted (wheeled) option available
For organizing quick delivery of required modules when a location change is needed.
An electro-hydraulic loading and unloading device can be installed
An electro-hydraulic loading and unloading device can be installed
For unloading the container from the chassis without involving third-party organizations, cranes or other special equipment.

Characteristics

1 mm
Thick steel internal lining
up to 200 kg
Rack load capacity
220 V
Mains voltage
Equipment per unit
Type KK 6.2 constant-volume containerized housing unit with life support systems
1
EQUIPMENT AND FURNITURE
rack for storing special items in bulk containers
4
cabinet for cleaning equipment
1
backup power supply with two batteries for the alarm system
1
barred wall with a sliding door (made from at least 10-mm steel rods placed no more than 150*150 mm apart; the rods are welded together at each point of overlapping)
1
swing doors with rod locks, light and sound signaling system
1
medical kit
1
folding seat
1
folding table
1
220 V protected sockets (twin), no fewer than
2
lamp (general and standby lighting), no fewer than
10
