Module for employee accommodation

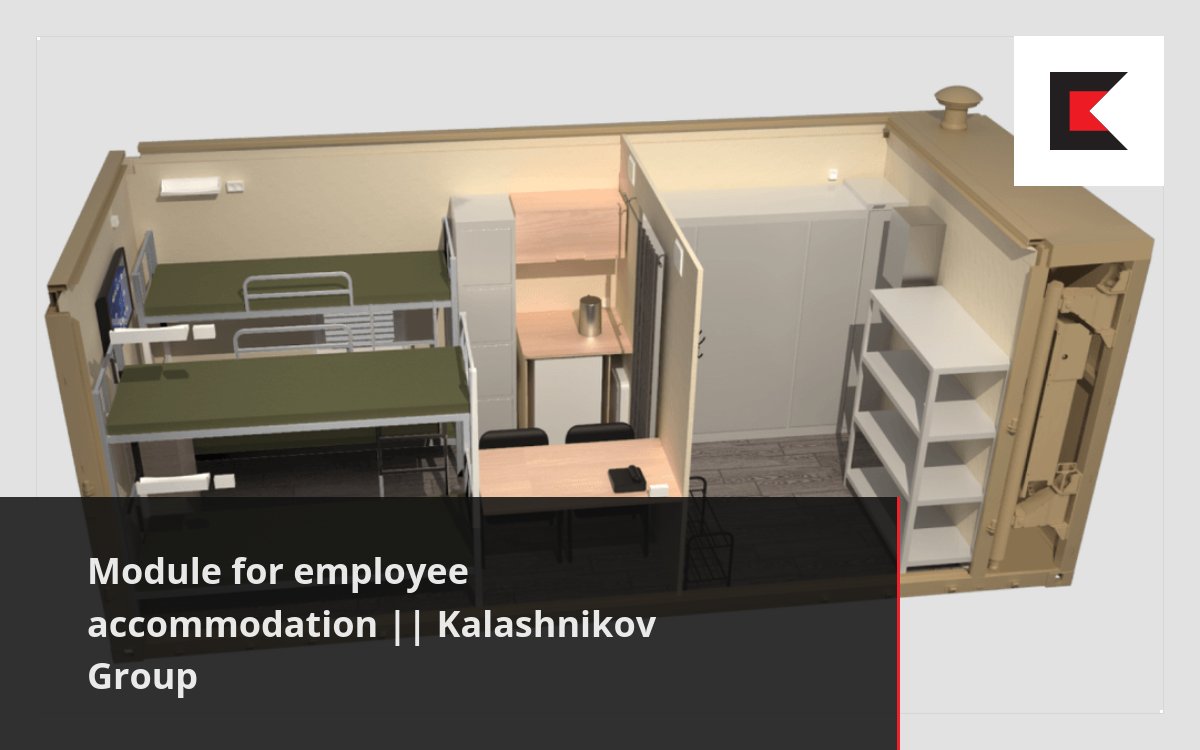

The module is designed for employee accommodation. It is equipped with beds, drying cabinets, a workstation, a cabinet for personal effects, a refrigerator, and a TV.
Capacity
up to 4 people
Dimensions, mm
6,058*2,438*2,350
Brand
Kalashnikov
Kalashnikov

Module for employee accommodation

The module is designed for employee accommodation. It is equipped with beds, drying cabinets, a workstation, a cabinet for personal effects, a refrigerator, and a TV.
Capacity
up to 4 people
Dimensions, mm
6,058*2,438*2,350
Brand
Kalashnikov
Kalashnikov

Description

Standard modular house models are supplied with the following:

  • equipment for accommodation, rest or work for 4 people;
  • cooking area.

Living conditions in the modular houses meet all sanitary and environmental standards. The buildings are equipped with air conditioners and electric heaters; they can also be equipped with solid-fuel furnaces for use in adverse climate. A power generator can be connected.

Fields of application

Mobile modules are mobile free-use buildings for accommodation in modular camps, tourist accommodation or rotation work.

Such mobile complexes are in high demand in many sectors, including emergency relief, construction of field camps, social projects, promotional and advertising campaigns, and many others.

Design features:

  • The bunk beds are located at the end of the containerized housing unit, opposite the front door.
  • The TV panel can be linked to a shared telecommunication network with central control from a control group module.
  • The furniture is selected in accordance with the overall dimensions, based on the space limitations of the containerized housing unit.

Features

Modern materials and insulators
Modern materials and insulators
Allow to maintain a comfortable temperature indoors while it is from +50 to -50 degrees Celsius outside. The operating temperature range can be expanded upwards depending on the climate in the area of use.
Vehicle-mounted (wheeled) option available
Vehicle-mounted (wheeled) option available
For organizing quick delivery of required modules when a location change is needed.
An electro-hydraulic loading and unloading device can be installed
An electro-hydraulic loading and unloading device can be installed
For unloading the container from the chassis without involving third-party organizations, cranes or other special equipment.

Characteristics

220 V
Mains voltage
4
Beds
2
Workstations
Equipment per unit
Type KK 6.2 constant-volume containerized housing unit with life support systems
1
EQUIPMENT AND FURNITURE:
bunk bed
2
bedside shelf for personal effects
4
4-cell cabinet for personal effects
1
cabinet for clothes with a drying section
2
cabinet for cleaning equipment
1
cabinet for tableware
1
folding table
1
desk with a space for a telephone set
1
table (for the built-in refrigerator)
1
chair
2
rack for 4 bags, 40 kg each (bag size: 105x40x40 cm)
1
32-inch TV panel
1
built-in mini refrigerator under the table (dimensions: no less than 620x480x490 mm)
electric kettle (no more than 2.5 kW)
1
curtain separating the living area from the mudroom
1
3-hook coat rack
4
shoe rack
1
220 V protected sockets (twin), no fewer than
6
telephone set
1 (per two modules)
PBX for the telephone network
1 per camp
Three-phase alternating voltage diesel generator, 400/230 V, 50 Hz, no less than 10 kW, with cables for connection to non-equipped modules
1 (per two modules)
