The vessel is designed in accordance with the Rules of the Russian River Register for the
R 1,2 A class, SanPiN group III.
Up

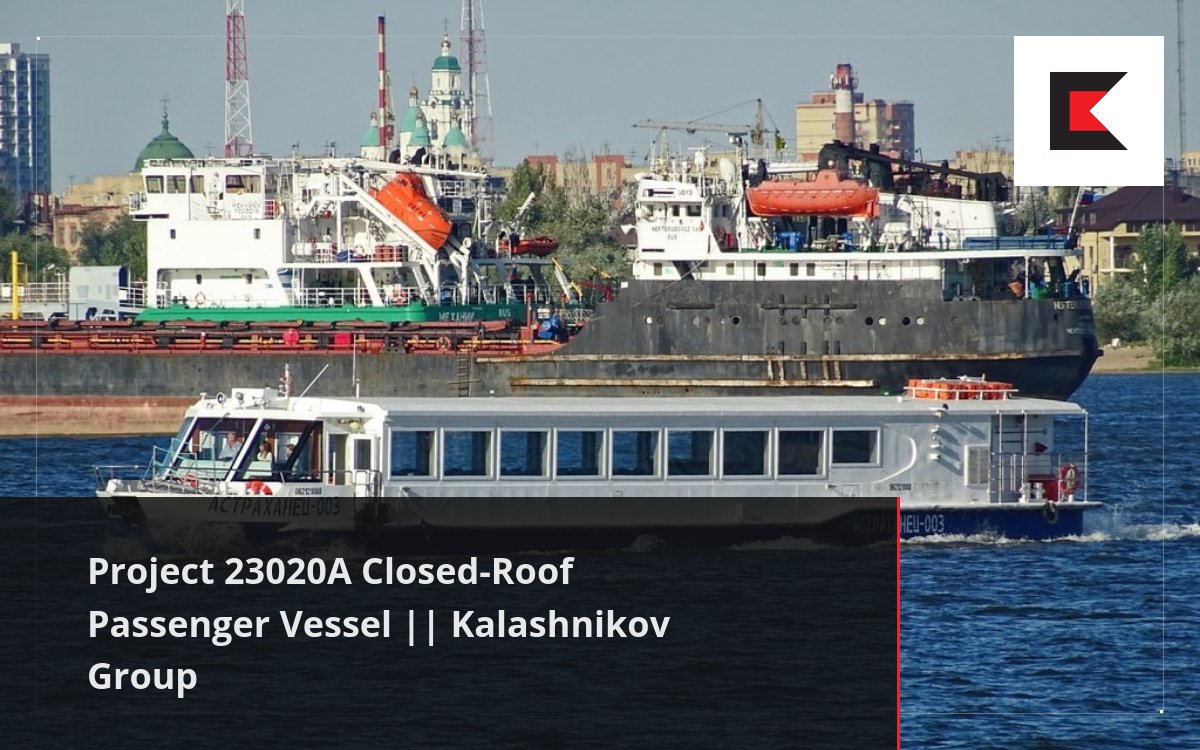

Project 23020A Closed-Roof Passenger Vessel
Project 23020A Closed-Roof Passenger Vessel
Ask a questionProject 23020A Closed-Roof Passenger Vessel
Designed for pleasure and sightseeing trips along the Moskva River, the Vodootvodny Canal, and the Moscow Canal
Overall length, ca, m
32.3
Overall breadth, m
6.2
Brand
Nobel Brothers Shipyard
Project 23020A Closed-Roof Passenger Vessel
Designed for pleasure and sightseeing trips along the Moskva River, the Vodootvodny Canal, and the Moscow Canal
Overall length, ca, m
32.3
Overall breadth, m
6.2
Brand
Nobel Brothers Shipyard
Description
Characteristics
500
Cruising range, km
12
Endurance, h
141
Passenger capacity
Extreme length, m
30.94
Length at the design waterline, m
29.9
Extreme breadth, m
5.3
Breadth at the design waterline, m
5.3
Midships depth, m
1.5
Minimum freeboard, m
0.74
Depth, baseline to top of fixed parts, m
4.38
Full speed, ca, km/h
15
Crew
2
Displacement with full stockage, ca, tonnes
90
Draft at the design waterline, m
0.76
