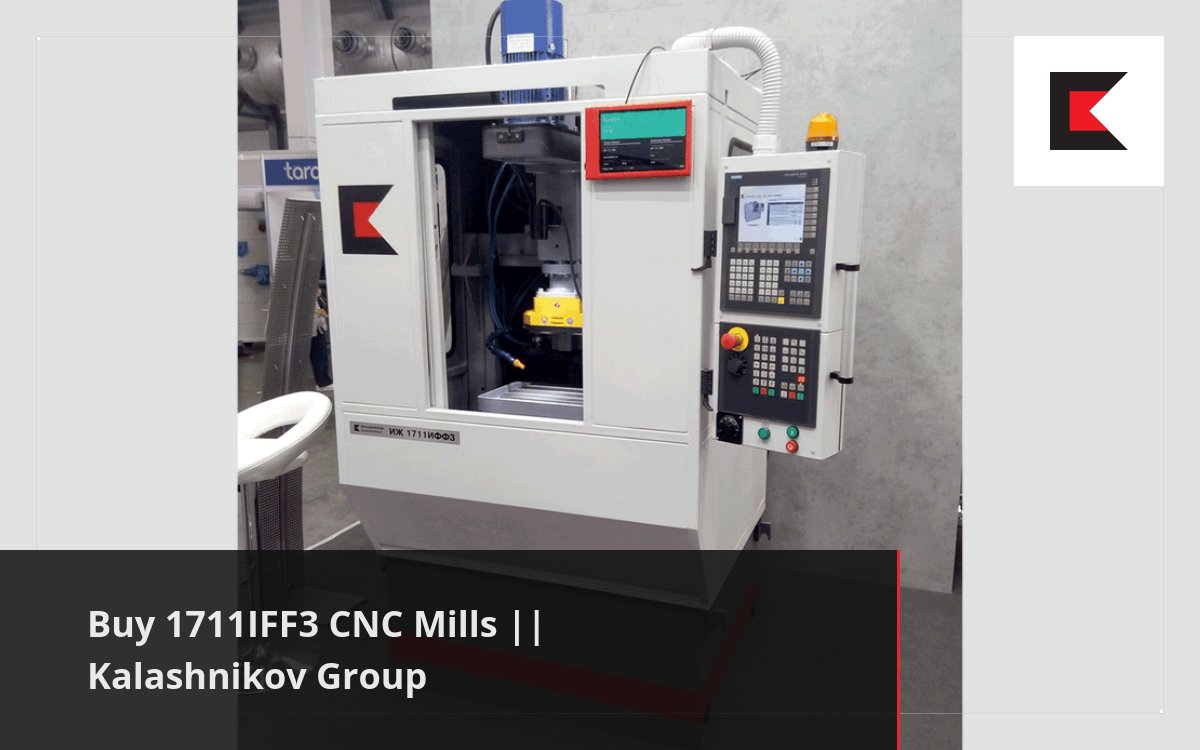

The 1711IFF3 vertical CNC milling machine is designed for milling complex curved surfaces, as well as drilling, countersinking, reaming, boring, and threading in large-batch and mass production.

The machine features a SINUMERIK 808D turnkey computer control system.

The design allows for the installation of virtually any turnkey computer control system for milling machines.

Characteristics

Precision class (GOST 8-82)

300

Table working surface length, mm

230

Table working surface width, mm

Compact size

High spindle rotation frequency

Number of spindles

Number of T-slots on the table

T-slot width, mm

Distance between T-slots, mm

70±0,4

Distance from the spindle face to the table working surface

max, mm

350

min, mm

Maximum programmable travel, mm, no less than

longitudinal (X axis)

200

lateral (Y axis)

200

Vertical (Z axis)

300

Travel setting positioning resolution on all axes, μm

Number of simultaneously controlled axes (X, Y, Z)

Spindle inner cone in accordance with GOST 19860

40AT5

Spindle rotation frequency, RPM

0-4,500

Maximum overall power, kW

7.5

Pressure in the pneumatic system, kg/cm2 (atm.)

4-6

Maximum dimensions, mm

width

1,420

length

1,600

height

2,250

Maximum weight, kg

2,000
