The unit is automated by means of an included transportation robot.
Manual control mode via the robot's remote control is available for troubleshooting and failure management.
New units can be manufactured according to the Customer's specifications.
Up
Non-weapon production
Automated etching unit

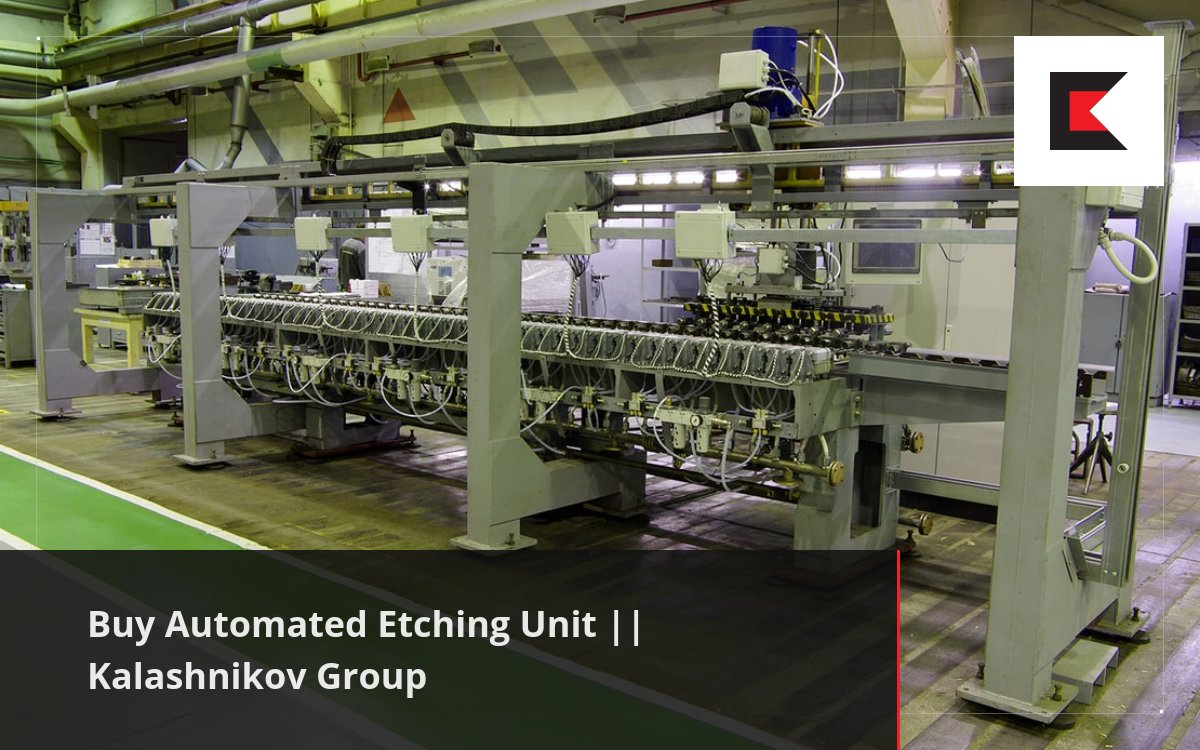

The 1380IL automated electrochemical etching unit is designed for the marking of basket or drum-contained parts.
Brand
Kalashnikov
Automated etching unit
The 1380IL automated electrochemical etching unit is designed for the marking of basket or drum-contained parts.
Brand
Kalashnikov
Description
Characteristics
Single-row
Unit layout
50
Capacity, kg/h
16
Number of programmable processing procedures
Compressed air pressure, MPa
0,4-0,6
Compressed air consumption, l/min, max.
300
Overall suction intensity, m3/h, max.
2,503
Water pressure, MPa
0,2-0,3
Water consumption for rinsing 1 m2 of basket and drum-contained parts, l
50
Number of transportation robots
1
Transportation robot load rating, kg, max.
50
Vertical displacement of the console, mm, max.
844
Vertical travel rate of the console, mm/sec, max.
200
Horizontal travel rate of the console, mm/sec, max.
700
Positioning accuracy, mm
±5
Overall weight, kg, max.
130
Number of simultaneously processed baskets and drums, max.
5
Number of programmable modes
7
Overall dimensions, mm, max. Length/Width/Height
11,170/1,859/2,287
