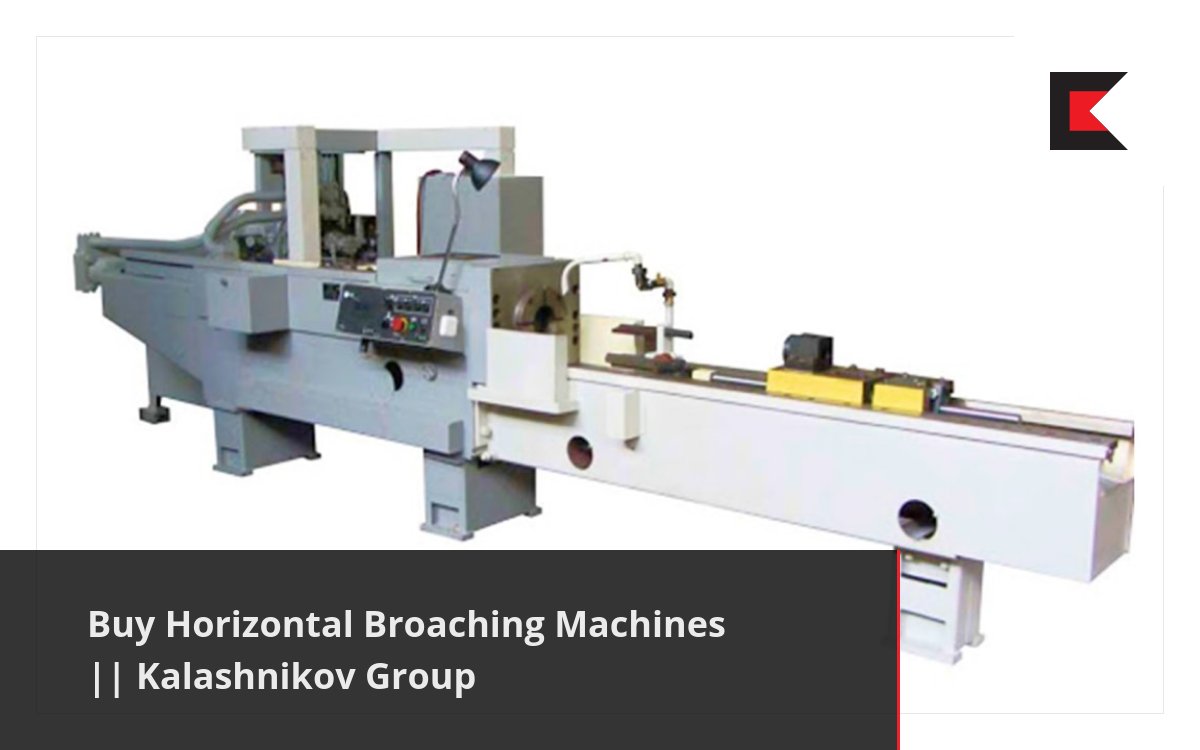

Горизонтально-протяжные станки.jpg

Horizontal broaching machines

Designed for final machining of holes of varying configurations, keyways, and splines with the use of broaches.
Brand
Kalashnikov
Kalashnikov

Horizontal broaching machines

Designed for final machining of holes of varying configurations, keyways, and splines with the use of broaches.
Brand
Kalashnikov
Kalashnikov

Description

Serial models: 1P, 30P.

These machines can be used as base for specially-designed automatic and semiautomatic models.

New machines can be manufactured according to the Customer's specifications.

Our machines are:

  • Simple and reliable;
  • Long-lasting;
  • Easy to operate and maintain.

Characteristics

29.4 - 49
Peak pulling capacity, kN
600 - 1,000
Maximum carriage travel, mm
3 - 4
Number of regular and reverse gears
1P
Peak pulling capacity, N
29,400
Maximum carriage travel, mm
600
Cutting stroke speed, m/min
1,43-4,82
Number of regular and reverse gears
3
Carriage guide length, mm
250
Overall dimensions, mm Length/Width/Height
2,300/790/1,050
Overall weight, kg
930
30P
Peak pulling capacity, N
49,000
Maximum carriage travel, mm
1,000
Cutting stroke speed, m/min
2,04-6,3
Number of regular and reverse gears
4
Carriage guide length, mm
200
Overall dimensions, mm Length/Width/Height
3,840/680/1,350
Overall weight, kg
1,500
