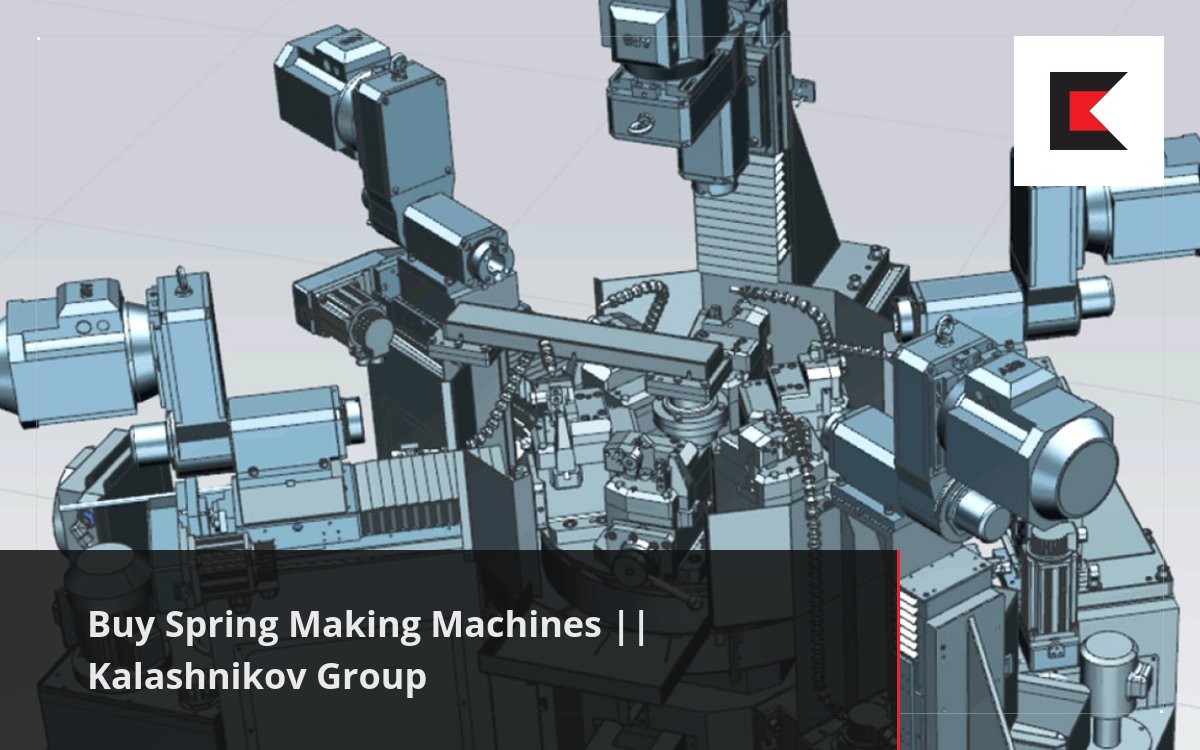

The machines are designed to make springs with varying parameters and characteristics.
They can be reconfigured and reset to accommodate for various spring types.
The high work rate allows the machines to be used in large-batch and mass manufacturing

Characteristics

Purpose

Winding of cylindrical springs from round wire

Used wire diameter, mm

0,3-0,1

Resulting spring diameter, mm

3-20

Spring length, winding pitch, mm Max number of coils

AZP

Purpose

Winding of cylindrical springs of tension and compression types from round wire

Used wire diameter, mm

1,0-3,0

Resulting spring diameter, mm

5-20

Spring length, winding pitch, mm

Any number of coils

114AZP

Purpose

Winding of springs from magazine-fed bar stock

Used wire diameter, mm

7,0

Resulting spring diameter, mm

45,5

Spring length, winding pitch, mm

n=16, t=13,8

130AZP

Purpose

Winding of springs of torsion and tension types from round wire. Production rate: 600-700/h

Used wire diameter, mm

1,0-3,0

Resulting spring diameter, mm

up to 50

Spring length, winding pitch, mm

n=30 (max)

131AZP

Purpose

Winding of springs of torsion and tension types from round wire. Production rate: 4,400/h

Used wire diameter, mm

0,5-1,4

Resulting spring diameter, mm

D010

Spring length, winding pitch, mm

Any number of coils

105PNA

Purpose

Winding of cylindrical, conical, and barrel springs of torsion and tension types from round wire

Used wire diameter, mm

1,6-8,0

Resulting spring diameter, mm

8-150

Spring length, winding pitch, mm

Any number of coils

Documentation
