Purpose

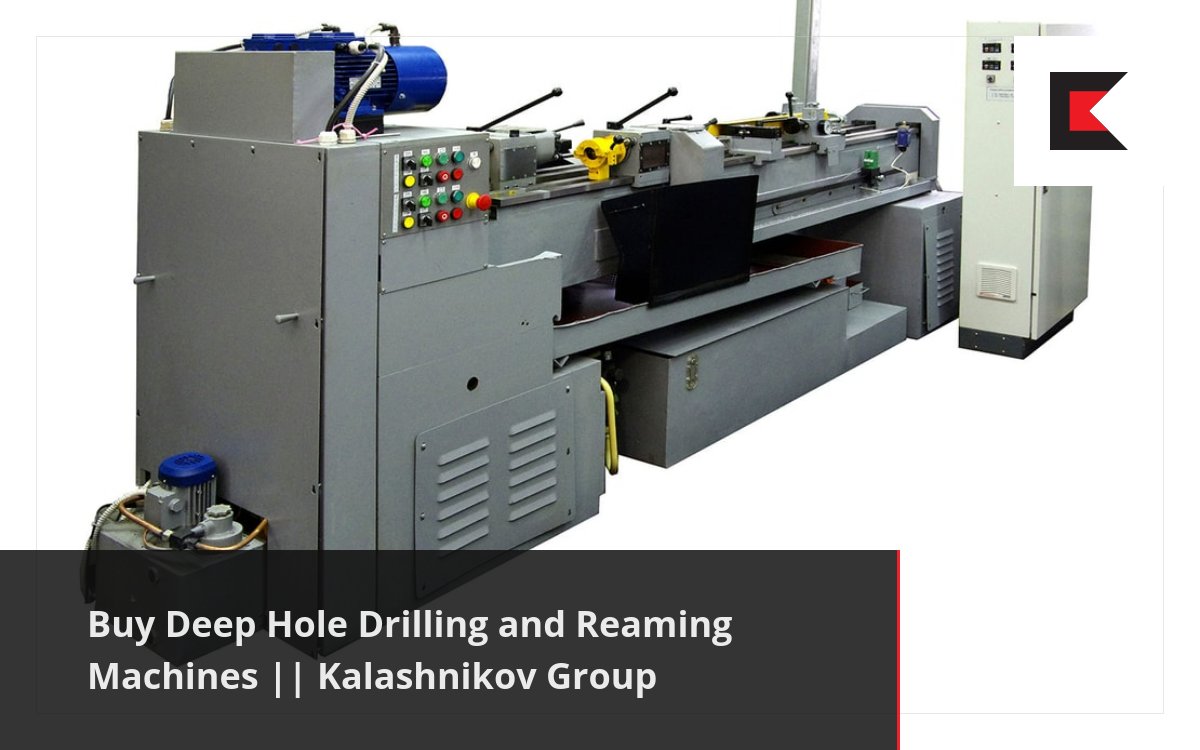

Designed for drilling and reaming deep centered holes in round parts. During the machining, the part rotates, and the tool is fed forward.
Serial models: 150GSBP, 1471IGS, 350IGSA, 151GR1M
Capabilities
The machines feature separate frequency-controlled main and feed drives. This allows for the precise setting of the required cutting mode, which is very important for deep hole machining.
New machines can be manufactured according to the Customer's specifications.
Deep hole drilling machines produced by Kalashnikov Concern cover a wide range of machining operations:
- Drilling holes 2.5-22 mm in diameter, up to 1,500 mm deep;
- Trepanning holes up to 25 mm in diameter, up to 300 mm deep;
- Reaming holes 5 to 18.5 mm in diameter, up to 800 mm deep.
