TP500F3 and TP1000F3 slant-bed lathes are designed for turning axially symmetric parts and threading in a closed semi-automatic cycle, mainly from piece blanks (bar stock also possible) in small-scale and batch production.
Up
Non-weapon production
TP500F3 and TP1000F3 lathes

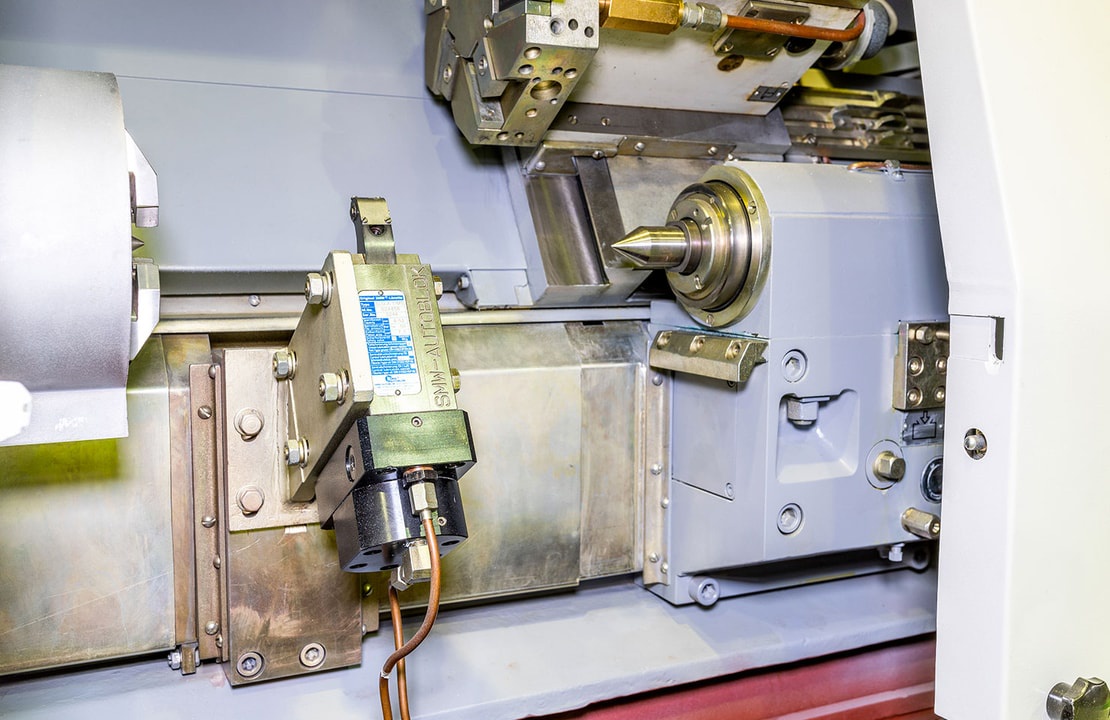

TP500F3 and TP1000F3 slant-bed lathes with computer numeric control
Brand
Kalashnikov
TP500F3 and TP1000F3 lathes
TP500F3 and TP1000F3 slant-bed lathes with computer numeric control
Brand
Kalashnikov
Description
Characteristics
P
Precision class in accordance with GOST 8-82
11
Electric main motion, kW
2
Time for turret position change (by one), max, s
Maximum installed workpiece diameter, mm
above the bed
250
above the carriage
160
Maximum diameter of workpiece machined above the carriage, mm
n/a
Maximum length of workpiece machined, mm
between the centers, mm
500
in a chuck, mm
100
Cylindrical threading pitch limit, mm
n/a
Spindle inner taper size in accordance with GOST 25557‑82
Morse 5
Spindle rotation frequency, rpm
0-3,000
Flanged spindle end in accordance with GOST 12595 85
2-4K
Number of controlled machine axes (including simultaneously)
n/a
Regulated headstock spindle rotation frequency
n/a
Permissible cumulative deviation from set travel, µm
X axis
16
Z axis
2
Permissible root mean square deviation, µm
X axis
1.2
Z axis
3
Travel setting positional resolution, mm
X axis
1
Z axis
2
Headstock spindle rotation (C axis), degrees
n/a
Saddle working carry-in limits, mm/min
X axis
1.5-1,800
Z axis
3-3,600
Saddle fast carry-in limits, m/min
X axis
5
Z axis
10
Number of turret positions
6
Cutting bit diameter installed in turret holders (bxb), mm
n/a
End tool diameter installed in fixed end tool holders, mm
n/a
End tool diameter installed in (axial/radial) rotating end tool holder, mm
n/a
Maximum height of bits installed in turret, mm
20
Maximum saddle travel, mm
X axis
n/a
Z axis
n/a
Tailstock spindle inner cone size in accordance with GOST 25557-82
n/a
Headstock spindle through hole diameter, mm
n/a
Maximum tailstock sleeve travel, mm
n/a
Maximum dimensions, mm
length
2,290
width
1,195
height
2,050
CNC unit type
Siemens 802S
Maximum weight, kg
3,200
Electric main motion, kW
11
TP1000F3
Precision class in accordance with GOST 8-82
P
Maximum installed workpiece diameter, mm above the bed
500
above the carriage
300
Maximum diameter of workpiece machined above the carriage, mm
250
Maximum length of workpiece machined, mm between the centers, mm
1000
in a chuck, mm
125
Cylindrical threading pitch limit, mm
0.2-40
Spindle inner taper size in accordance with GOST
25557‑82
Spindle rotation frequency, rpm
0-6,000
Number of controlled machine axes (including simultaneously)
3
Regulated headstock spindle rotation frequency
stepless
Permissible cumulative deviation from set travel, µm
X axis
±1
Z axis
±1
Permissible root mean square deviation, µm
Permissible root mean square deviation, µm
Z axis
3
Travel setting positional resolution, mm
X axis
0.5
Z axis
1
Headstock spindle rotation (C axis), degrees
0.036
Saddle working carry-in limits, mm/min
X axis
1.5-1,800
Z axis
3-3,600
Saddle fast carry-in limits, m/min
X axis
5 (15)**
Z axis
10 (20)
Number of turret positions
8
Cutting bit diameter installed in turret holders (bxb), mm
12*16
End tool diameter installed in fixed end tool holders, mm
6-12
End tool diameter installed in (axial/radial) rotating end tool holder, mm
1-10
Maximum height of bits installed in turret, mm
20
Time for turret position change (by one), max, s
2
Maximum saddle travel, mm
X axis
+340 /-79
Z axis
1,100
Tailstock spindle inner cone size in accordance with GOST 25557-82
Morse 4 AT6
Headstock spindle through hole diameter, mm
92
Maximum tailstock sleeve travel, mm
80
Maximum dimensions, mm length
2,290
width
1,195
height
2,050
CNC unit type
Siemens 808D
Maximum weight, kg
5,000
Electric main motion, kW
11
