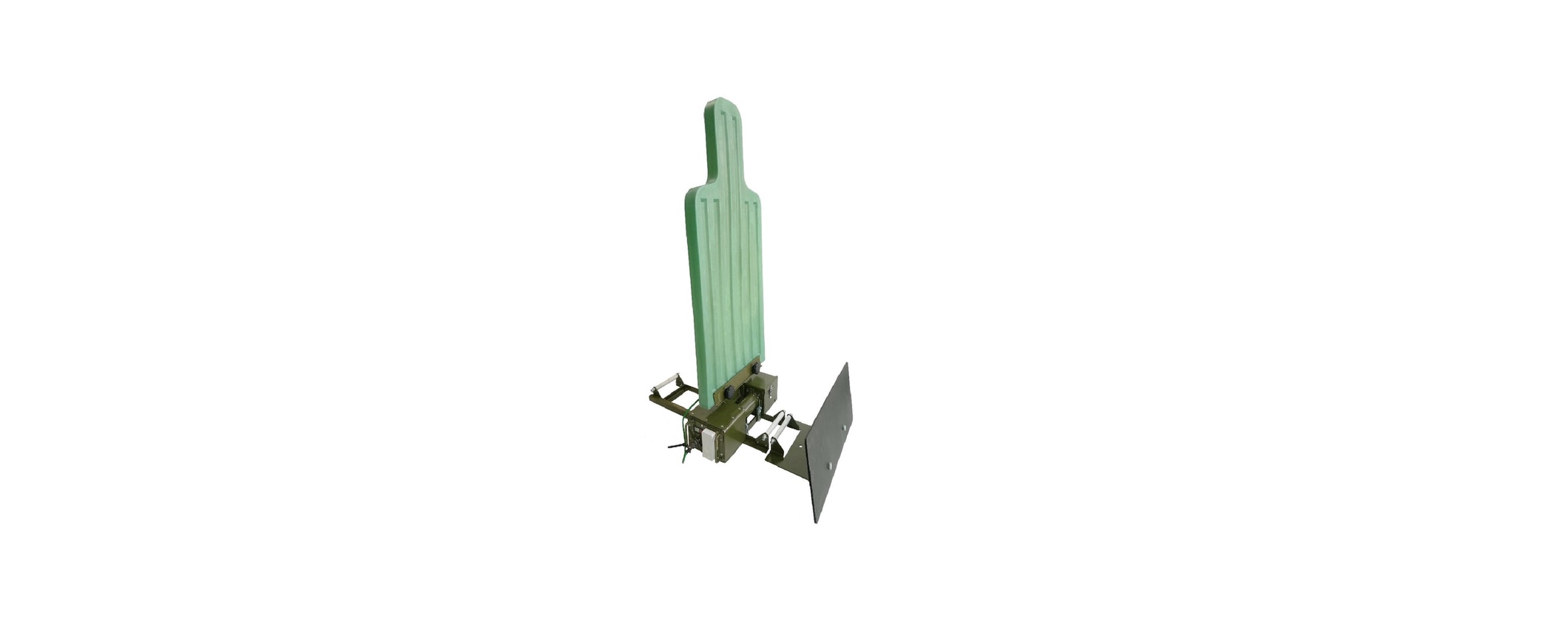

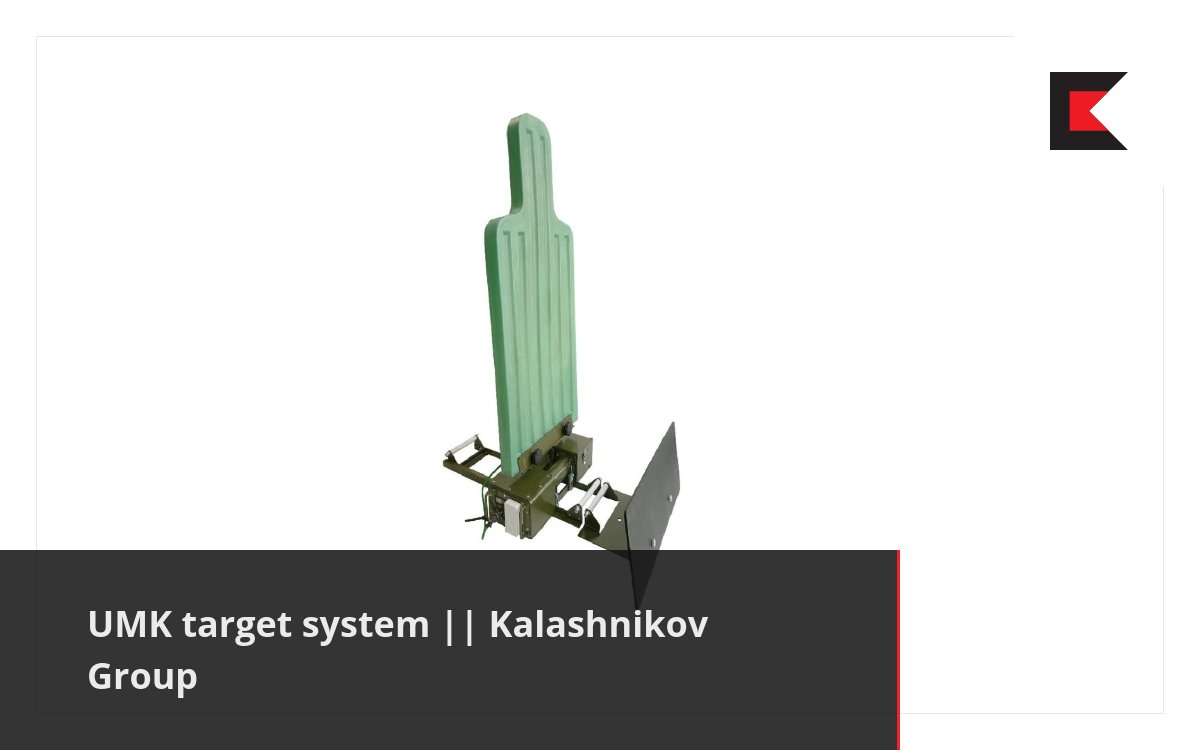

UMK target system

A modern radio-controlled target system designed for providing training and test shooting exercises with live weapons, both individually and as a part of armed units, at equipped or unequipped shooting ranges.
Weight, kg
15
Dimensions
215x550x230
Communication range
up to 1,000 m
Brand
Kalashnikov
Kalashnikov

UMK target system

A modern radio-controlled target system designed for providing training and test shooting exercises with live weapons, both individually and as a part of armed units, at equipped or unequipped shooting ranges.
Weight, kg
15
Dimensions
215x550x230
Communication range
up to 1,000 m
Brand
Kalashnikov
Kalashnikov

Description

The target system helps create a most realistic environment for combat training.

Target system

  • quick deployment on equipped and unequipped shooting ranges
  • rapid creation and replay of exercise scenarios
  • reporting of exercise results
  • possible simultaneous deployment of several target systems on the same range
  • target positioning on the map by hand or by coordinates received from GPS and GLONASS satellites

Target unit

  • targets can be installed horizontally or vertically
  • quick battery change
  • radio-controlled or autonomous operation
  • universal impact sensor for all types of targets

Remote control equipment

  • target system control via Bluetooth wireless interface or standard USB interface
  • effortless setup and high connection reliability
  • control at distances up to 1,000 m
  • unlimited control range in difficult situations when using retransmission algorithm
  • tracking and registering geographic coordinates of the system's components
  • system of self-diagnosis and tracing of technical condition
  • operation of several target systems through selection of signal power, frequency and data transmission channel
  • compact radio control elements

Software

  • Android operating system
  • automatic target positioning on the map in accordance with
  • coordinates received from GPS/GLONASS modules;
  • target clustering
  • wide array of settings for each target (type, operation mode, start position, time to hit, number of hits to score, drop delay after each hit, etc.)
  • verification of created exercise scenarios in simulation mode (without receiving or transmitting commands over the radio channel)
  • target environment programming based on the shooter's position and the movement of the target units around the range
  • target practice saving and loading
  • information on each target (battery level, radio signal level, target status, etc.)

The target system provides for unrivalled training quality.

Characteristics

-40°C...+40°C
Operating temperature
GPS GLONASS
Target geolocation
Popup time
up to 3 sec
Shooter tracking
Creation of exercises based on the shooter's movement
Operating temperature
-40°C to +40°C
Target geolocation
GPS and GLONASS
Retransmission
Targets can relay radio signal to enhance communication
Protection
Bulletproof target shield
Target
2.5 kg weight, 1.7 m height
